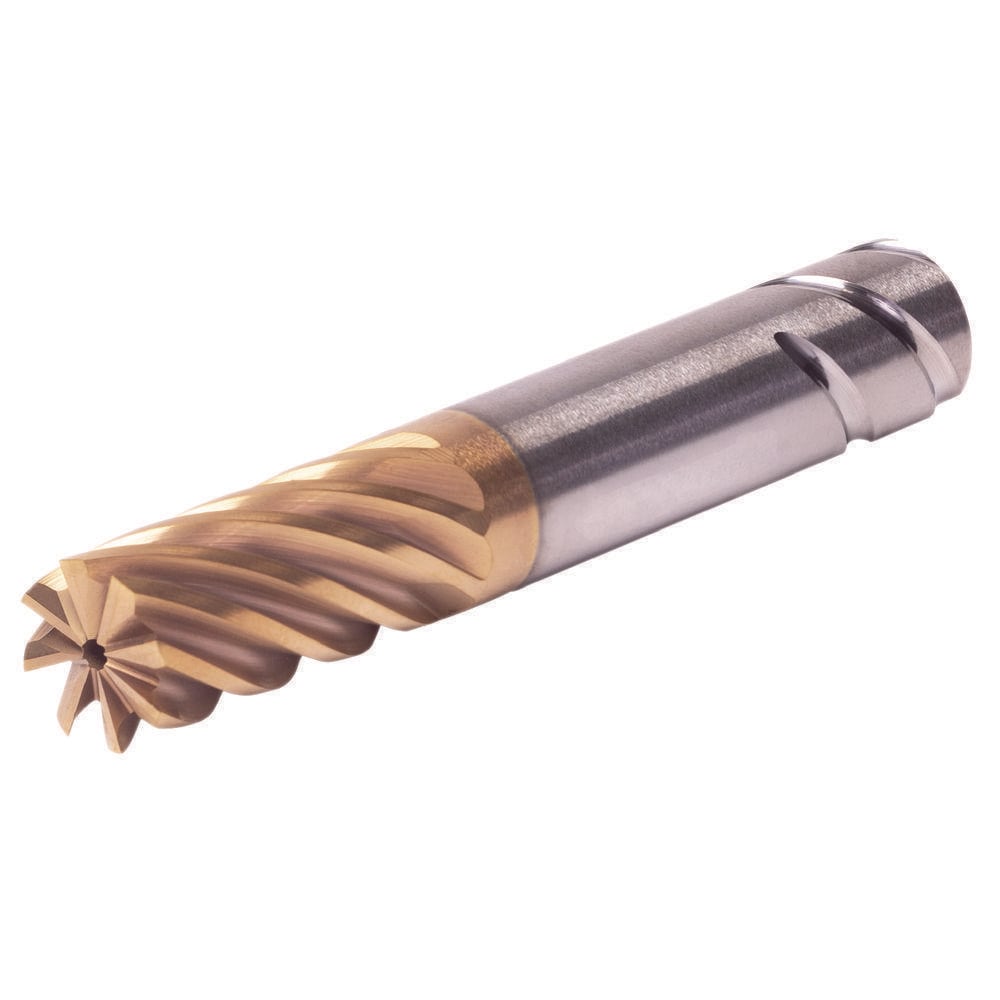

Roughing & Finishing End Mills; Mill Diameter (Fractional Inch): 5/8; Mill Diameter (mm): 15.88; Flute Type: Helical Flute; Number Of Flutes: 8; End Mill Material: Solid Carbide; Length of Cut (Inch): 1-1/4; Length of Cut (mm): 31.75; Coating/Finish: AlCr
Item #: 74054388
Brand: Kennametal
Model #: 7102527
Product Specifications
| Mill Diameter (Fractional Inch) | 5/8 |
| Mill Diameter (mm) | 15.88 |
| Flute Type | Helical Flute |
| Number Of Flutes | 8 |
| End Mill Material | Solid Carbide |
| Length of Cut (Inch) | 1-1/4 |
| Length of Cut (mm) | 31.75 |
| Coating/Finish | AlCrN |
| Centercutting | No |
| End Type | Single |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Shank Diameter (Inch) | 5/8 |
| Mill Diameter (Decimal Inch) | 0.6250 |
| Length of Cut (Decimal Inch) | 1.2500 |
| Shank Type | Safe-Lock |
| Shank Diameter (mm) | 15.88 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Chipbreaker | Yes |
| Variable Helix | Yes |
| Variable Index | Yes |
| Helix Angle | 35 |
| Cutting Direction | Right Hand |
| Series | HARVI IV |
| UNSPSC Code | 27112803 |
| Mill Diameter (Fractional Inch) | 5/8 |
| Mill Diameter (mm) | 15.88 |
| Flute Type | Helical Flute |
| Number Of Flutes | 8 |
| End Mill Material | Solid Carbide |
| Length of Cut (Inch) | 1-1/4 |
| Length of Cut (mm) | 31.75 |
| Coating/Finish | AlCrN |
| Centercutting | No |
| End Type | Single |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Shank Diameter (Inch) | 5/8 |
| Mill Diameter (Decimal Inch) | 0.6250 |
| Length of Cut (Decimal Inch) | 1.2500 |
| Shank Type | Safe-Lock |
| Shank Diameter (mm) | 15.88 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Chipbreaker | Yes |
| Variable Helix | Yes |
| Variable Index | Yes |
| Helix Angle | 35 |
| Cutting Direction | Right Hand |
| Series | HARVI IV |
| UNSPSC Code | 27112803 |
| MSC Part # | 74054388 |
| Mfr Part # | 7102527 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
