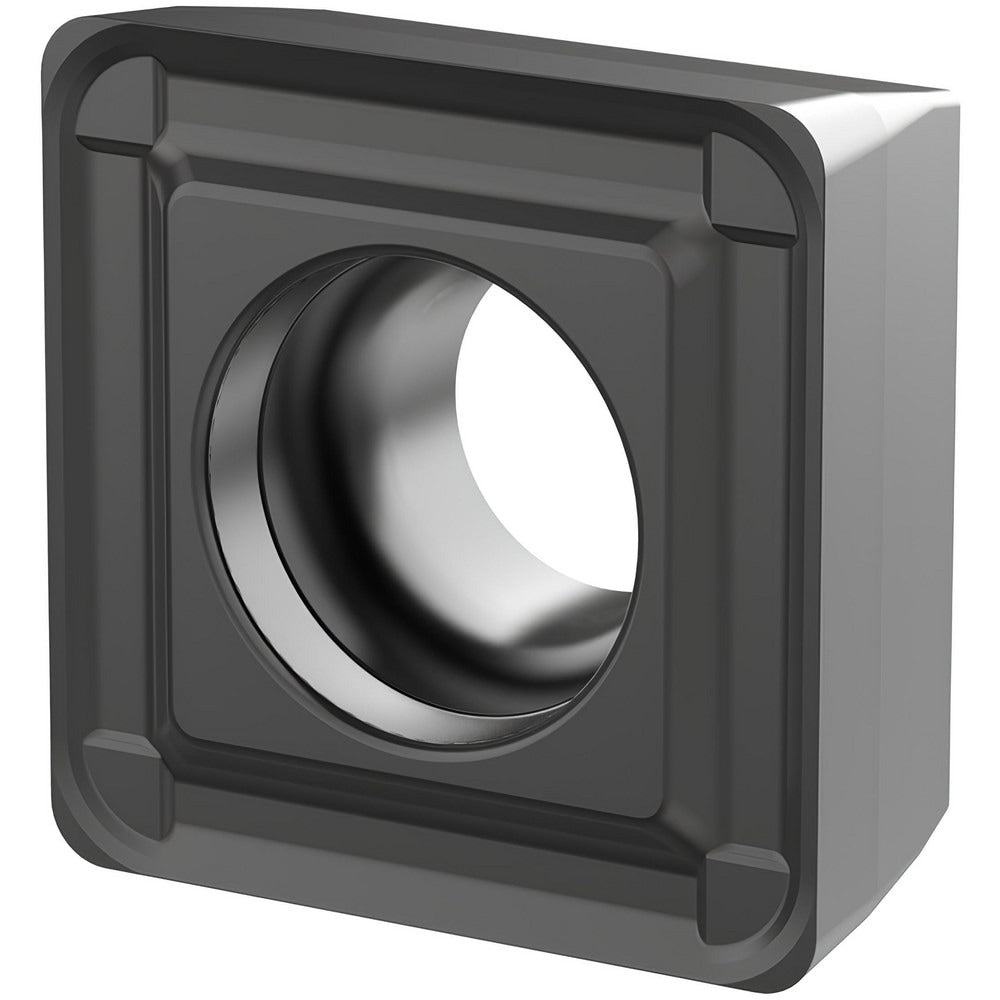

Indexable Drill Inserts; Insert Style: SPPX; Insert Material: Carbide; Manufacturer Grade: KCMS35; Thickness (Inch): 5/32; Inscribed Circle (Inch): 3/8
Item #: 02521052
Brand: Kennametal
Model #: 7064734
Product Specifications
| Insert Style | SPPX |
| Insert Material | Carbide |
| Manufacturer Grade | KCMS35 |
| Thickness (Inch) | 5/32 |
| Inscribed Circle (Inch) | 3/8 |
| Corner Radius (mm) | 1 |
| Chipbreaker | HP |
| Series | Drill Fix |
| Shape | Square |
| Relief Angle | 11 |
| Ansi Code | SPPX09T310HP |
| Iso Code | SPPX09T310HP |
| Compatible Drill Style | DFSP |
| Insert Size | 09 |
| Width (mm - 2 Decimals) | 9.38 |
| Length (Mm) | 9.38 |
| Width (Decimal Inch - 4 Decimals) | 0.3694 |
| Length (Decimal Inch - 4 Decimals) | 0.3694 |
| Included Angle Degree | 11 |
| Coating/Finish | AlTiN |
| Insert Size Code | 09 |
| UNSPSC Code | 23242105 |
