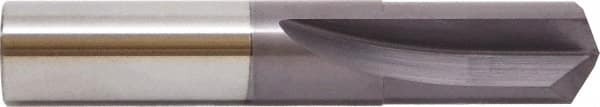

145° 10mm Diam 70mm OAL 2-Flute Solid Carbide Spotting Drill AlTiN Finish, 25mm Flute Length, 10mm Shank Diam, RH Cut, Series 200S
Item #: 58256462
Brand: M.A. Ford?
Model #: 200S39370A
Product Specifications
| Drill Point Angle | 145 |
| Cutting Diameter (mm) | 10.00 |
| Cutting Diameter (Decimal Inch) | 0.3937 |
| Overall Length (mm) | 70.00 |
| Tool Material | Solid Carbide |
| Coating/Finish | AlTiN |
| Single/Double Ended | Single |
| Series | 200S |
| Overall Length (Decimal Inch) | 2.7559 |
| Flute Length (Decimal Inch) | 0.9843 |
| Flute Length (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Shank Diameter (mm) | 10.00 |
| Flute Type | Straight |
| Number of Flutes | 2 |
| Shank Type | Straight-Cylindrical |
| Tool Performance | General Purpose |
| Tool Application | Spotting |
| Cutting Direction | Right Hand |
