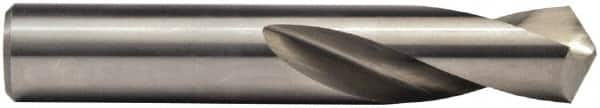

120° 2-1/2″ OAL 2-Flute Solid Carbide Spotting Drill AlTiN Finish, 5/16″ Shank Diam, RH Cut, Series 403
Item #: 58249657
Brand: M.A. Ford?
Model #: 40331250A
Product Specifications
| Drill Point Angle | 120 |
| Cutting Diameter (Inch) | 5/16 |
| Cutting Diameter (Decimal Inch) | 0.3125 |
| Overall Length (Inch) | 2-1/2 |
| Tool Material | Solid Carbide |
| Coating/Finish | AlTiN |
| Single/Double Ended | Single |
| Series | 403 |
| Overall Length (Decimal Inch) | 2.5000 |
| Flute Length (Inch) | 1 |
| Flute Length (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 5/16 |
| Shank Diameter (Decimal Inch) | 0.3125 |
| Flute Type | Spiral |
| Number of Flutes | 2 |
| Shank Type | Straight-Cylindrical |
| Helix Angle | 21 |
| Tool Performance | General Purpose |
| Tool Application | Spotting |
| Cutting Direction | Right Hand |
