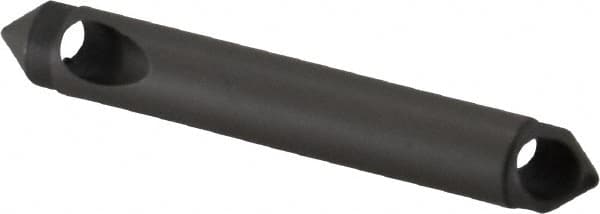

Weldon - 1/4" Shank Diam, 82° High Speed Steel Countersink
Item #: 02543221
Brand: Weldon
Model #: 98810-94-W
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications on both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Included Angle | 82 |
| Countersink Material | High Speed Steel |
| Countersink Finish/Coating | Bright |
| Shank Diameter (Inch) | 1/4 |
| Maximum Cutting Diameter (Inch) | 15/64 |
| Overall Length (Inch) | 1-3/4 |
| Countersink Application | Countersinking |
| Minimum Hole Diameter (Decimal Inch) | 0.0730 |
| Maximum Hole Diameter (Inch) | 15/64 |
| End Type | Double |
| Shank Type | Straight |
| Includes Pilot | No |
| Countersink Head Only | No |
| Cutting Direction | Right Hand |
| Centerline Angle | 41 |
| PSC Code | 5133 |
