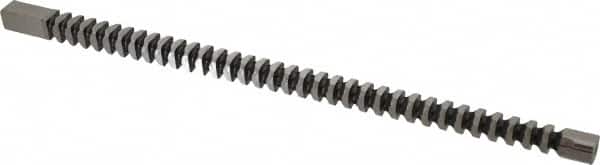

Dumont Minute Man - 11/16" x 17-3/4" Overall Length, 3/4" Pilot Hole Diam, Square Broach
Item #: 90404351
Brand: Dumont Minute Man
Model #: 66616
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Square Size (Inch) | 11/16 |
| Pilot Hole Diameter (Inch) | 3/4 |
| Pilot Hole Diameter (Decimal Inch) | 0.7500 |
| Minimum Length of Cut (Inch) | 5/8 |
| Maximum Length of Cut (Inch) | 1-5/8 |
| Minimum Dimension Across Corners (Decimal Inch) | 0.9630 |
| Maximum Dimension Across Corners (Decimal Inch) | 0.9650 |
| Overall Length (Inch) | 17-3/4 |
| Pressure Required for Maximum Length of Cut (Lb.) | 4800 |
| Tooth Pitch (Inch) | 7/16 |
| Minimum Tolerance (Decimal Inch) | 0.6885 |
| Maximum Tolerance (Decimal Inch) | 0.6895 |
| Broach Material | High Speed Steel |
| Broach Coating | Bright |
