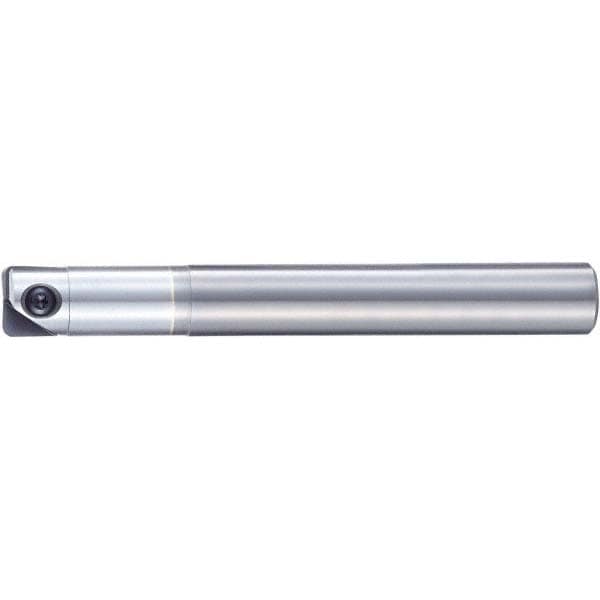

Indexable Square-Shoulder End Mill: PFR-R0500SA0500-S450CS, 1/2" Cut Dia, 1-1/4" Max Depth of Cut, 1/2" Dia Cylindrical Shank
Item #: 55702203
Brand: OSG
Model #: 52200006
Product Specifications
| Cutting Diameter | 0.5000 in |
| Cutting Diameter | 1/2 |
| Overall Length (Decimal Inch) | 4.5000 |
| Overall Length (Inch) | 4-1/2 |
| Maximum Depth of Cut (Decimal Inch) | 1.2500 |
| Cutter Style | PFR |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Shank Diameter (Inch) | 1/2 |
| Insert Holding Method | Screw |
| Tool Material | High-Speed Steel |
| Series | 52200 |
| Lead Angle | 0 |
| Head Length (Decimal Inch) | 4.5 |
| Insert Compatibility | PFR? |
| UNSPSC Code | 27112803 |
| Number Of Flutes | 2 |
| Number Of Cutter Inserts | 2 |
| Coolant Through | No |
| Cutting Diameter | 0.5000 in |
| Cutting Diameter | 1/2 |
| Overall Length (Decimal Inch) | 4.5000 |
| Overall Length (Inch) | 4-1/2 |
| Maximum Depth of Cut (Decimal Inch) | 1.2500 |
| Cutter Style | PFR |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Shank Diameter (Inch) | 1/2 |
| Insert Holding Method | Screw |
| Tool Material | High-Speed Steel |
| Series | 52200 |
| Lead Angle | 0 |
| Head Length (Decimal Inch) | 4.5 |
| Insert Compatibility | PFR? |
| UNSPSC Code | 27112803 |
| Number Of Flutes | 2 |
| Number Of Cutter Inserts | 2 |
| Coolant Through | No |
| MSC Part # | 55702203 |
| Mfr Part # | 52200006 |
| Country of Origin Country of Origin is subject to change | Japan |
