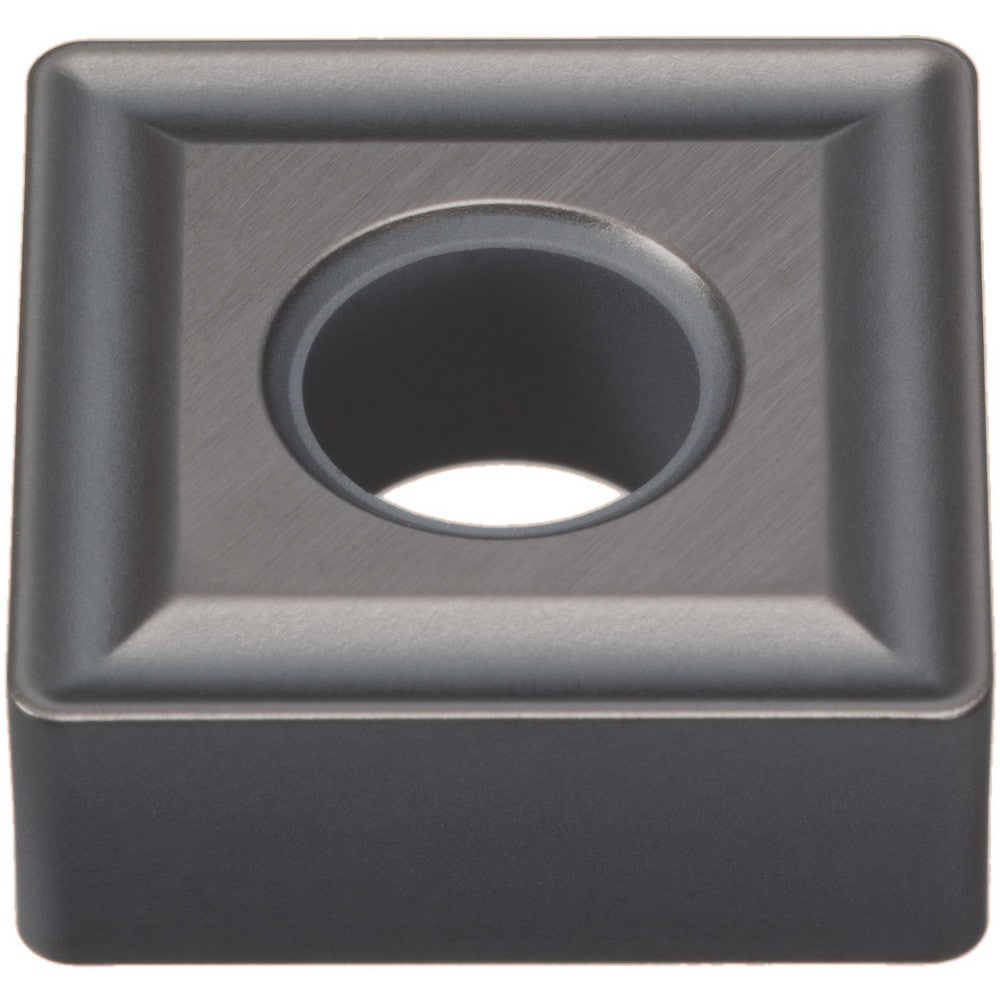

Turning Insert: SNMG321 NX3035, Cermet
Item #: 03026333
Brand: Mitsubishi
Model #: 438184
Product Specifications
| ANSI Insert Code | SNMG321 |
| ISO Insert Code | SNMG090304 |
| Relief Angle | 0 |
| Insert Style | SNMG |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Included Angle | 90 |
| Manufacturer Grade | NX3035 |
| Coating/Finish | Bright/Uncoated |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness | 3.18 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (mm) | 9.53 |
| Insert Material | Cermet |
| Insert Shape | S - Square |
| Grade Characteristics | Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Negative |
| Number Of Cutting Edges | 8 |
| Insert Shape Code | S |
| Clearance Code | N |
| Tolerance Code | M |
| Primary Workpiece Material Code | P |
| Chip Breaker | Pressed |
| ANSI Size Code | 321 |
| ISO Size Code | 090304 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 3 |
