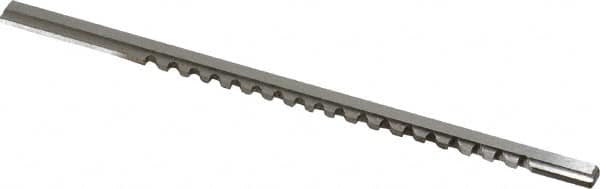

Value Collection - 1/16" Keyway Width, Style A, Keyway Broach
Item #: 00300210
Brand: Value Collection
Model #:
Features and Benefits
Keyway broaches are used for producing keyway-shaped holes in a workpiece. They may be used with shims if the depth cannot be broached in a single pass. They also require a guide bushing for producing the keyway.
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Keyway Broach Type | Keyway |
| Keyway Width (Inch) | 1/16 |
| Broach Style | A |
| Broach Material | High Speed Steel |
| Broach Coating | Bright |
| Broach Body Width (Inch) | 1/8 |
| Minimum Length of Cut (Inch) | 13/64 |
| Maximum Length of Cut (Inch) | 1-1/8 |
| Overall Length (Inch) | 5 |
| Minimum Keyway Width Tolerance (Decimal Inch) | 0.0625 |
| Maximum Keyway Width Tolerance (Decimal Inch) | 0.0635 |
| Number of Shims Required | 0 |
| Material Application | Ferrous and Non-Ferrous Metals |
