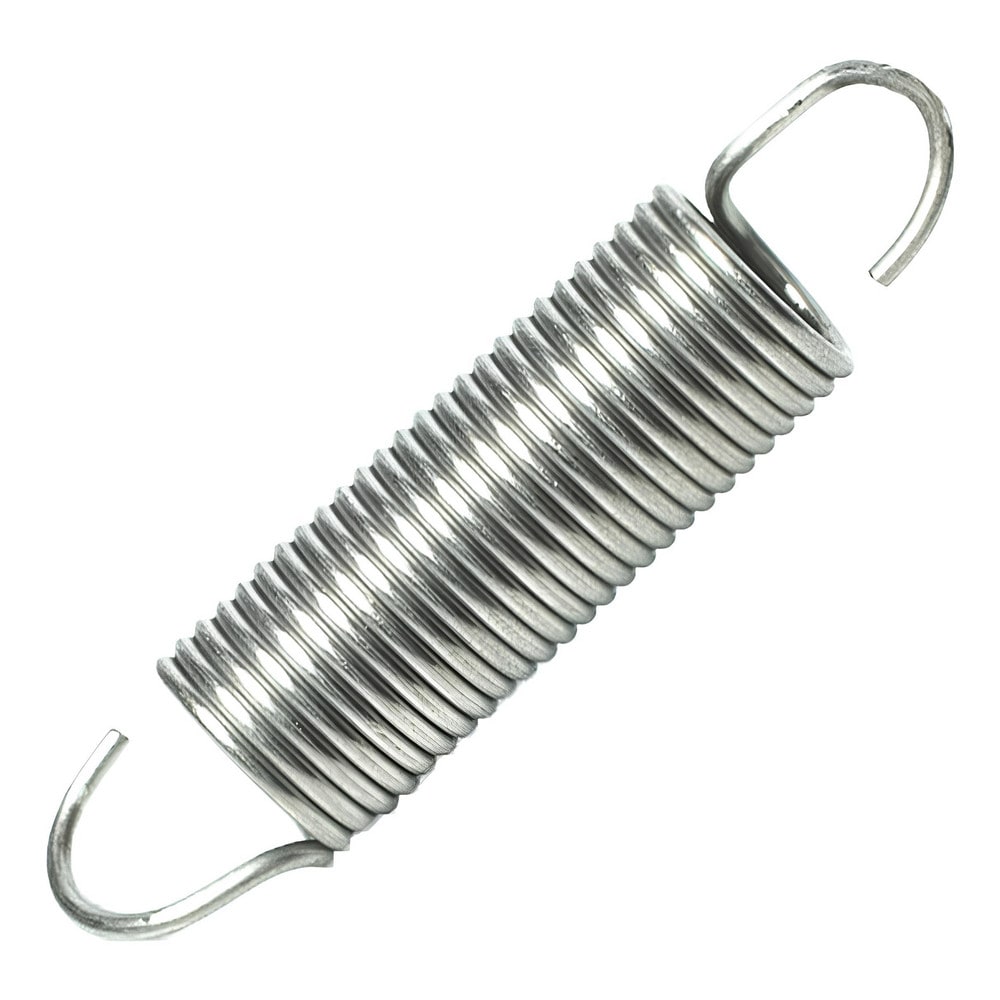

Extension Springs; End Type: Hook; Outside Diameter (mm): 9.0000; Spring Rate: 136.0000; Material: Stainless Steel; Overall Length (Decimal Inch): 1.2620
Item #: 03270261
Brand: Associated Spring Raymond
Model #: MHM0901800028S
Product Specifications
| End Type | Hook |
| Outside Diameter (mm) | 9.0000 |
| Spring Rate | 136.0000 |
| Material | Stainless Steel |
| Overall Length (Decimal Inch) | 1.2620 |
| Initial Tension (N) | 49.1 |
| Maximum Extended Length (mm) | 33.80 |
| Free Length (mm) | 28.400 |
| Inside Hook Length (Fractional Inch) | 1-1/8 |
| Standards | JIS G4314 SUS 302/304; EN 10270-3; ASTM A313 |
| Finish/Coating | Uncoated |
| Wire Size (mm) | 1.80 |
| UNSPSC Code | 31161907 |
