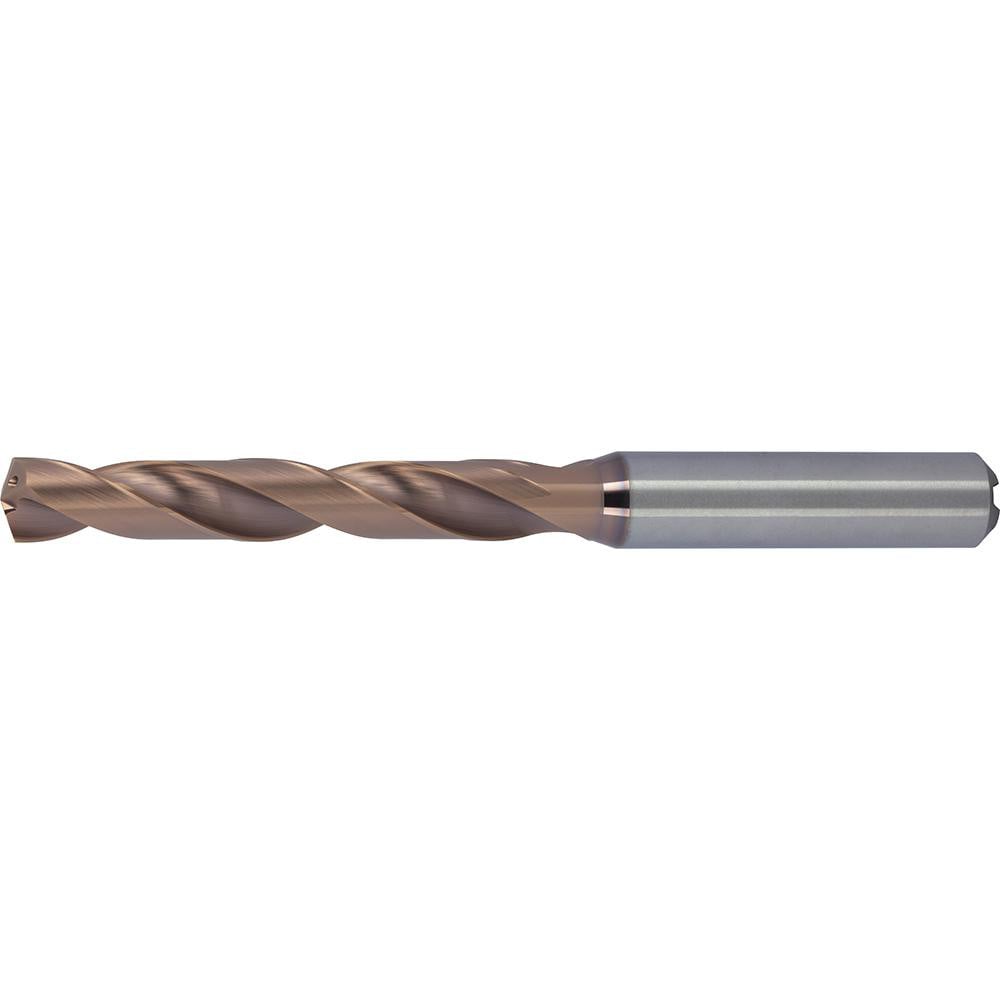

Jobber Drill: 10.20 mm Dia, 140 deg Point, Solid Carbide
Item #: 02244200
Brand: Emuge
Model #: TA211724.1020
Product Specifications
| Drill Bit Size (mm) | 10.20 |
| Drill Bit Size (Decimal Inch) | 0.4016 |
| Drill Bit Material | Solid Carbide |
| Drill Point Angle (Degrees) | 140 |
| Coating/Finish | AlCrN |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | Standard |
| Coolant Through | Yes |
| Number of Flutes | 2 |
| Overall Length (mm) | 118.00 |
| Overall Length (Decimal Inch) | 4.6457 |
| Flute Length (mm) | 71.00 |
| Flute Length (Decimal Inch) | 2.7953 |
| Proprietary Coating/Finish | ALCR-89 |
| Series | TA211724 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 16 |
| Shank Type | Straight |
| UNSPSC Code | 23241634 |
