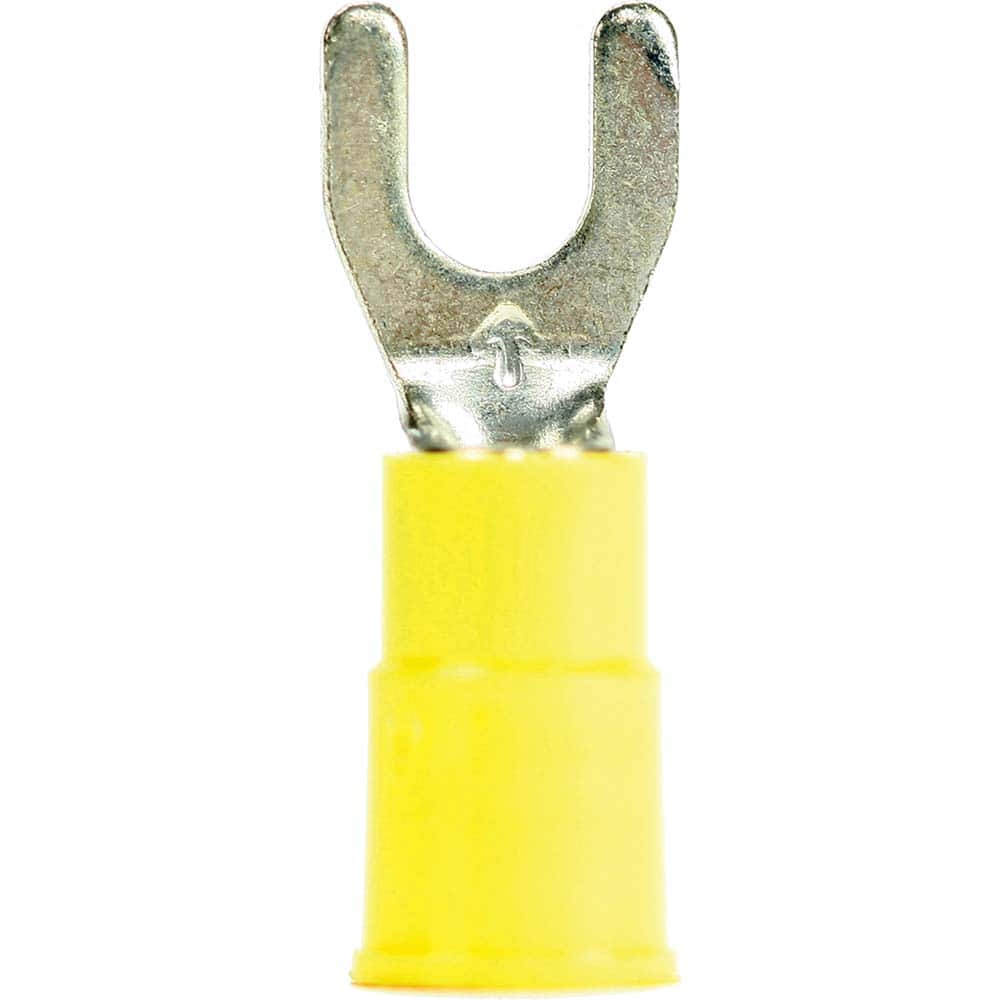

3M - #8 Stud, 12 to 10 AWG Compatible, Partially Insulated, Crimp Connection, Standard Fork Terminal
Item #: 77675692
Brand: 3M
Model #: 7010349252
| Product Specifications | |
|---|---|
| Terminal Type | Standard |
| Insulation Type | Partially Insulated |
| Connection Type | Crimp |
| Compatible Wire Size (AWG) | 12-10 |
| Stud Size (#) | 8 |
| Fork Width (Decimal Inch) | 0.3200 |
| Insulation Material | Vinyl |
| Color | Yellow |
| Overall Length (Decimal Inch) | 1.0300 |
| Thickness (Decimal Inch) | 0.0400 |
| Contact Material | Copper |
| Contact Plating | Tin |
| Standards Met | CSA Certified; CSA LR22190; RoHS 2011/65/EU Compliant; UL File E23438; UL Listed |
