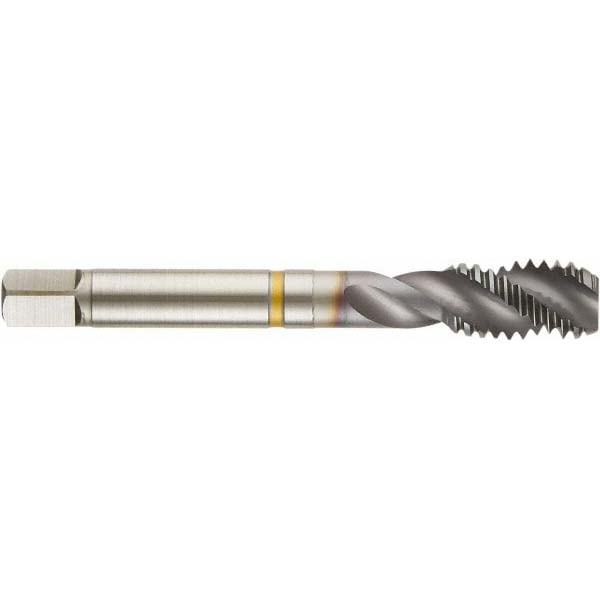

Spiral Flute Tap: M7x1, Metric, 3 Flute, Modified Bottoming, 6H Class of Fit, Cobalt, Ignator Finish
Item #: 04629556
Brand: Guhring
Model #: 9048830070000
Product Specifications
| Thread Size (mm) | M7x1 |
| Thread Standard | Metric |
| Chamfer | Modified Bottoming |
| Material | Cobalt |
| Thread Limit | D5 |
| Class Of Fit | 6H |
| Coating/Finish | Proprietary |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Number Of Flutes | 3 |
| Material Application | Ductile Iron; Malleable Cast Iron; Alloy Steel; Stainless Steel; Cast Iron; Case-Hardened Steel; Free-Cutting Steel; Structural Steel; Tool Steel; Aluminum Alloy; Heat-Treated Steel; Alloy Tool Steel |
| Flute Direction | Right Hand |
| Helix Angle | 40 |
| Proprietary Coating/Finish | Ignator |
| Oversize | No |
| Primary Workpiece Material | Aluminum & Non-Ferrous; Stainless Steel; Cast Iron; Steel |
| Thread Length (Decimal Inch) | 0.4330 |
| Overall Length (Decimal Inch) | 2.7200 |
| Thread Pitch (mm) | 1.00 |
| Primary Workpiece Material Code | P; K; M; N |
| Application | Blind Hole Threading |
| Shank Diameter (Decimal Inch) | 0.3180 |
| Neck Length (Decimal Inch) | 0.9440 |
| Tapping Depth (Decimal Inch) | 1.3770 |
| Square Size (mm) | 6.00 |
| Flute Style | Fast |
| Series | 4883 |
| UNSPSC Code | 23241600 |
