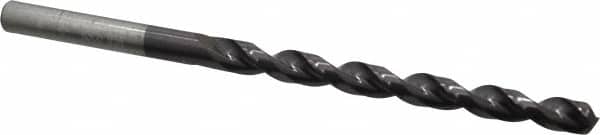

Cleveland - #4 135° Cobalt Jobber Drill
Item #: 03763000
Brand: Cleveland
Model #: C16990
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Titanium Aluminum Nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN. As a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications.
Parabolic flutes are constructed with a wider flute shape for increased chip flow.
| Product Specifications | |
|---|---|
| Drill Bit Size (Wire) | #4 |
| Drill Bit Size (Decimal Inch) | 0.2090 |
| Drill Point Angle | 135 |
| Drill Bit Material | Cobalt |
| Drill Bit Finish/Coating | TiAlN |
| Flute Type | Parabolic |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (Inch) | 2-1/2 |
| Flute Length (mm) | 63.50 |
| Flute Length (Decimal Inch) | 2.5000 |
| Overall Length (mm) | 95.25 |
| Overall Length (Decimal Inch) | 3.7500 |
| Overall Length (Inch) | 3-3/4 |
| Point Type | Split Point |
| Specification Designation | ANSI |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (Decimal Inch) | -0.0007 to 0.0000 |
| Number of Flutes | 2 |
| Web Thinning | Web-Thinned |
| Material Grade | M42 |
| Series/List | 2075A |
