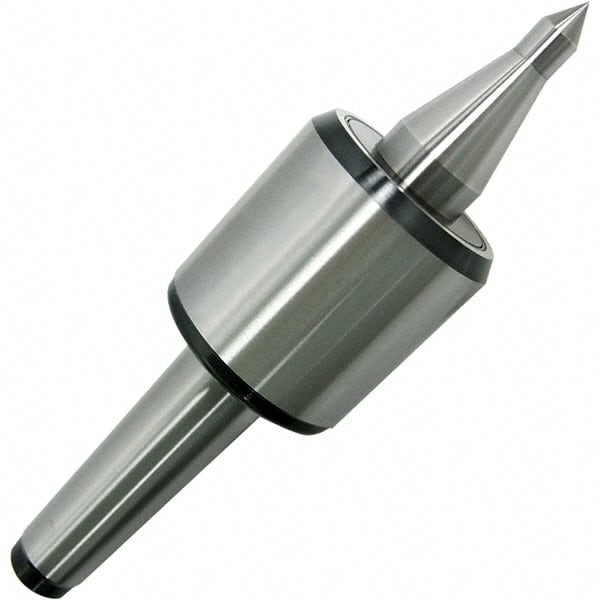

Accupro - Live Centers Shank Type: Morse Taper Taper Size: MT3
Item #: 99454357
Brand: Accupro
Model #:
Features and Benefits
Standard points are used for a variety of applications including turning and grinding.
Product Specifications
Live Centers; Shank Type: Morse Taper ; Taper Size: MT3 ; Maximum Workpiece Weight (Lb.): 1,653.47 ; Maximum Workpiece Weight (kg): 750.00 ; Point Style: Standard ; Point Diameter (mm): 20.00
| Shank Type | Morse Taper |
| Taper Size | MT3 |
| Maximum Workpiece Weight (Lb.) | 1653.47 |
| Maximum Workpiece Weight (kg) | 750.00 |
| Point Style | Standard |
| Point Diameter (mm) | 20.00 |
| Tip Diameter (mm) | 10.00 |
| Point Length (mm) | 37.00 |
| Accuracy (mm) | 0.0020 |
| Tip Length (Decimal Inch) | 0.5906 |
| Load Capacity (Lb.) | 1653.47 |
| Head Diameter (mm) | 50.00 |
| Head Length (Decimal Inch) | 2.2835 |
| Shank Length (Decimal Inch) | 3.3465 |
| Overall Length (mm) | 180.00 |
| Point to Gauge Line (mm) | 99.50 |
| Included Angle | 60.00 |
| Maximum RPM | 6000 |
| Carbide-Tipped | No |
