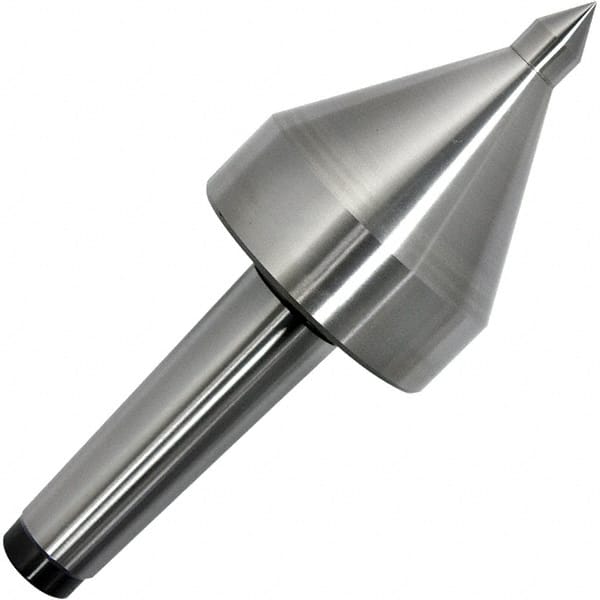

Accupro - Live Centers Shank Type: Morse Taper Taper Size: MT3
Item #: 95692166
Brand: Accupro
Model #:
Features and Benefits
Standard points are used for a variety of applications including turning and grinding.
Product Specifications
Live Centers; Shank Type: Morse Taper ; Taper Size: MT3 ; Maximum Workpiece Weight (Lb.): 705.50 ; Maximum Workpiece Weight (kg): 320.00 ; Point Style: Standard ; Point Diameter (mm): 12.00
| Shank Type | Morse Taper |
| Taper Size | MT3 |
| Maximum Workpiece Weight (Lb.) | 705.50 |
| Maximum Workpiece Weight (kg) | 320.00 |
| Point Style | Standard |
| Point Diameter (mm) | 12.00 |
| Point Length (mm) | 57.10 |
| Accuracy (mm) | 0.0030 |
| Accuracy (Decimal Inch) | 0.000120 |
| Tip Length (Decimal Inch) | 0.7480 |
| Load Capacity (Lb.) | 705.48 |
| Head Diameter (mm) | 56.00 |
| Shank Length (Decimal Inch) | 3.3465 |
| Overall Length (mm) | 171.00 |
| Point to Gauge Line (mm) | 92.00 |
| Included Angle | 60.00 |
| Maximum RPM | 5000 |
| Carbide-Tipped | No |
