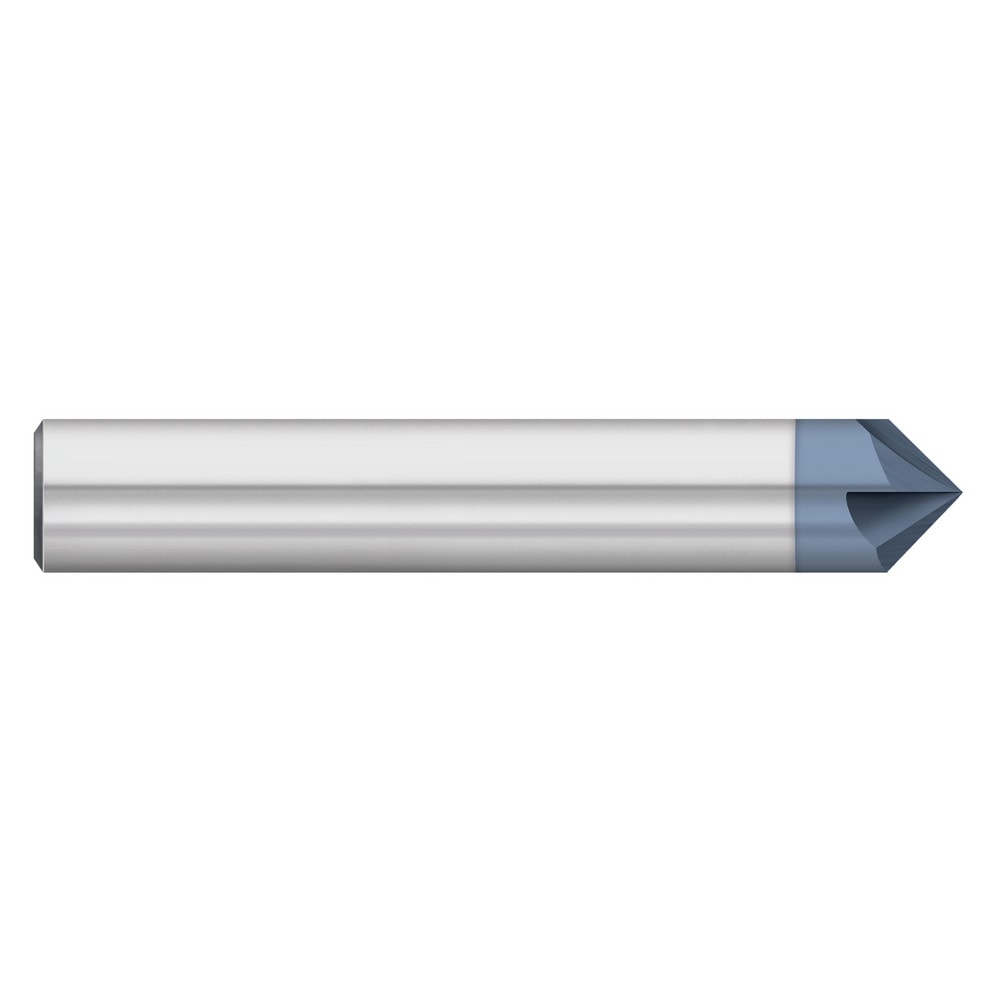

Chamfer Mill: 1/8" Dia, 1/8" Shank Dia, 45.00 deg, 4 Flute, Solid Carbide, Single End
Item #: 62566955
Brand: Titan USA
Model #: TC95440
Product Specifications
| Cutter Head Diameter (Fractional Inch) | 1/8 |
| Cutter Head Diameter (Decimal Inch) | 0.1250 |
| End Type | Single |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Shank Diameter (Inch) | 1/8 |
| Overall Length (Inch) | 1-1/2 |
| Number Of Flutes | 4 |
| Series | Chamfer Mills - 4 Flute - Pointed Tip |
| Coolant Through | No |
| Chamfer Mill Material | Solid Carbide |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.0630 |
| Coating/Finish | AlTiN |
| Included Angle | 45.00 |
| UNSPSC Code | 23241600 |
| Cutter Head Diameter (Fractional Inch) | 1/8 |
| Cutter Head Diameter (Decimal Inch) | 0.1250 |
| End Type | Single |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Shank Diameter (Inch) | 1/8 |
| Overall Length (Inch) | 1-1/2 |
| Number Of Flutes | 4 |
| Series | Chamfer Mills - 4 Flute - Pointed Tip |
| Coolant Through | No |
| Chamfer Mill Material | Solid Carbide |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.0630 |
| Coating/Finish | AlTiN |
| Included Angle | 45.00 |
| UNSPSC Code | 23241600 |
| MSC Part # | 62566955 |
| Mfr Part # | TC95440 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
