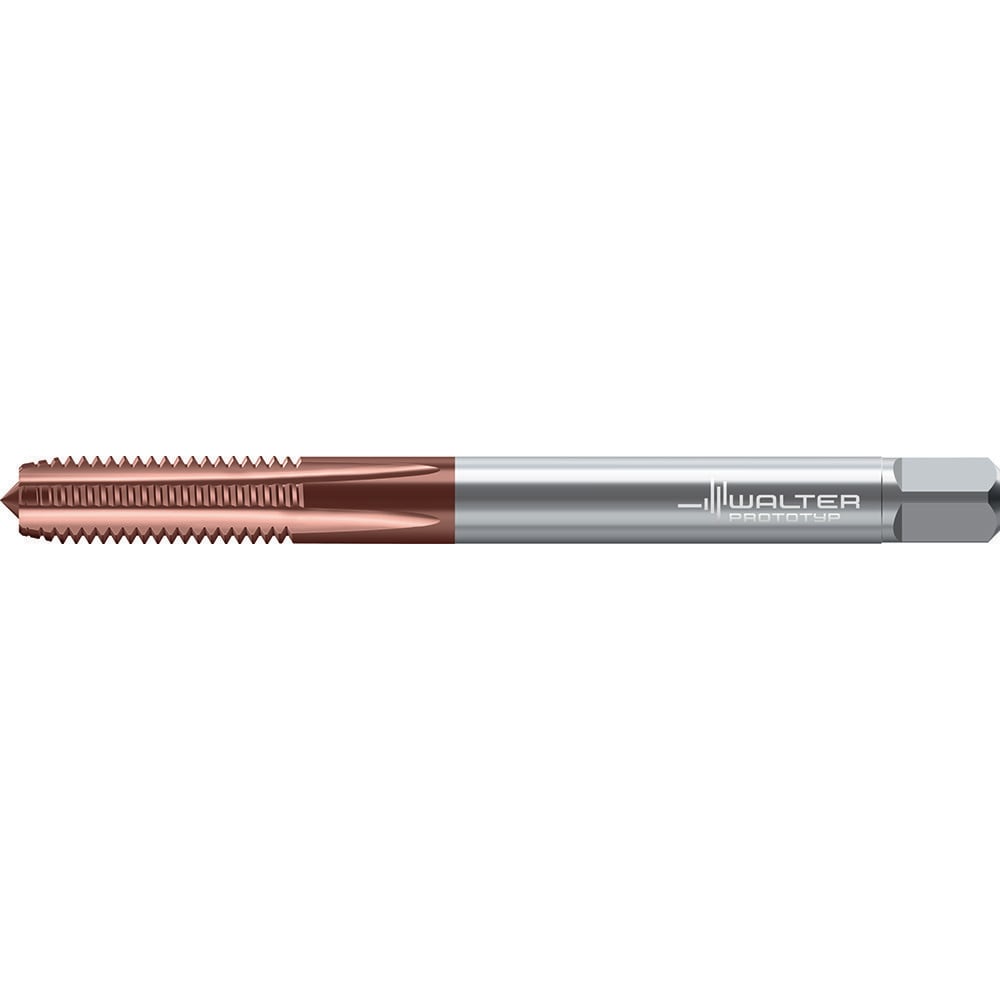

Straight Flute Tap: M5 x 0.8 M, 5 Flute, Plug Chamfer, 6HX Class of Fit, Solid Carbide, AlTiSiN Finish
Item #: 53457032
Brand: Walter-Prototyp
Model #: 8205996
Product Specifications
| Tap Type | Straight Flute |
| Thread Size (mm) | M5 x 0.8 |
| Thread Standard | M |
| Chamfer | Plug |
| Material | Carbide |
| Coating/Finish | AlTiSiN |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Class Of Fit | 6HX |
| Thread Limit | H6 |
| Number Of Flutes | 5 |
| Oversize | No |
| Overall Length (Decimal Inch) | 2.8386 |
| Overall Length (mm) | 72.1000 |
| Thread Pitch (mm) | 0.80 |
| Thread Length (Inch) | 0.5709 |
| Thread Length (mm) | 14.50 |
| Application | Threading |
| Shank Diameter (mm) | 6.0000 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Tapping Depth (mm) | 14.50 |
| Tapping Depth (Decimal Inch) | 0.5709 |
| Square Length (mm) | 8.00 |
| Square Length (Decimal Inch) | 0.3150 |
| Square Size (mm) | 4.90 |
| Square Size (Decimal Inch) | 0.1929 |
| Series | TC389 |
| UNSPSC Code | 23241600 |
