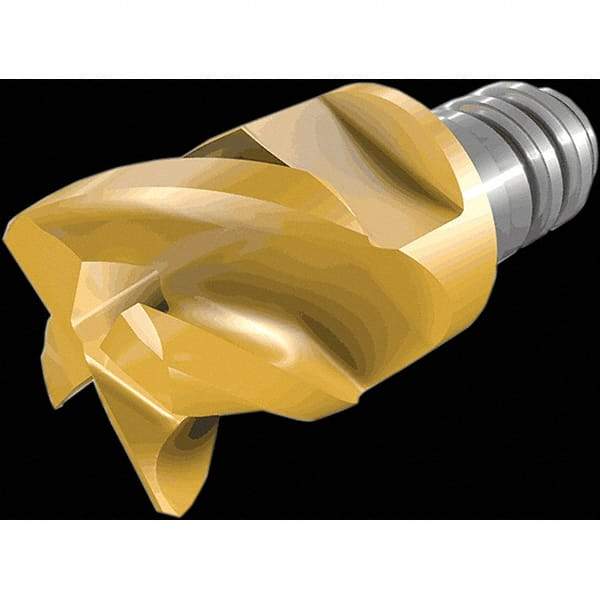

Iscar - MM EC-H CF Grade IC908 Carbide End Milling Tip Insert - TiAlN Finish, 4 Flutes, 1/2" Cutting Diam, 0.366" Depth of Cut, 0.65" Extension, 46/48° Helix
Item #: 57966509
Brand: Iscar
Model #: 5667817
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Series | Multimaster |
| Milling Tip Style | MM EC-H |
| Milling Tip Type | End Mill |
| Material | Carbide |
| Cutting Diameter (Decimal Inch) | 0.5000 |
| Material Grade | Fine Grain |
| Manufacturer's Grade | IC908 |
| Depth of Cut (Decimal Inch) | 0.3660 |
| Number of Flutes | 4 |
| Coating | TiAlN |
| Milling Tip Full Description | Roughing & Finishing End Mill |
| Coating Process | PVD |
| Chipbreaker | CF |
| Extension From Holder (Decimal Inch) | 0.6500 |
| Thread Size | T08 |
| Helix Angle | 46/48 |
| Style | MM EC.500H37C20-4T08CF |
| Manufacturers Catalog Number | MM EC.500H37C20-4T08CF |
| Chamfer Angle | 45 |
