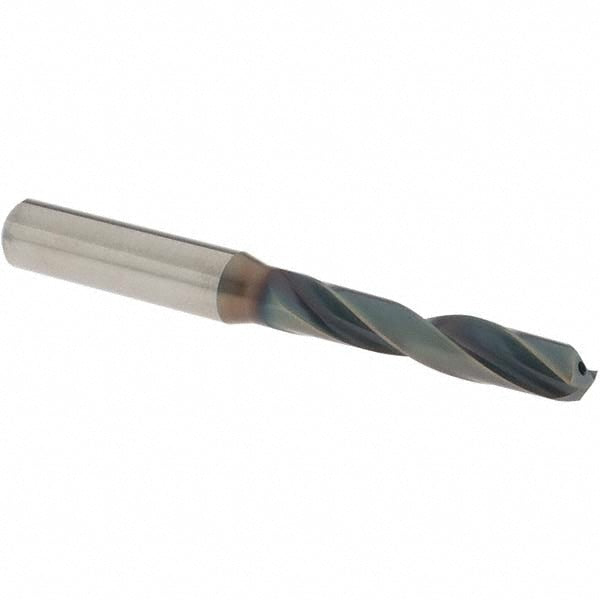

Screw Machine Length Drill Bit: Letter P, 140 deg Point, Solid Carbide
Item #: 46810685
Brand: OSG
Model #: HP253-3228
Product Specifications
| Drill Bit Size (Letter) | P |
| Drill Bit Size (mm) | 8.20 |
| Drill Bit Size (Decimal Inch) | 0.3228 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Multi-layer |
| Number Of Flutes | 2 |
| Spiral Type | Regular |
| Flute Type | Regular Spiral |
| Drill Point Angle | 140 |
| Coolant Through | Yes |
| Primary Workpiece Material | Cast Iron; Steel |
| Point Type | R-Thinned |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.0394 |
| Overall Length (mm) | 89.00 |
| Overall Length (Decimal Inch) | 3.5039 |
| Shank Diameter (mm) | 10.00 |
| Series | HP253 |
| Web Thinning | R-Thinned |
| Web Configuration | Tapered |
| Proprietary Coating/Finish | EgiAs |
| Drill Length Type | Screw Machine |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | High Performance |
| Drill Bit Diameter Tolerance | +0.006 to +0.021 mm |
| Flute Length (mm) | 47.00 |
| Drill Bit Size Range (Decimal Inch) | 0.3000 to 0.3500 |
| UNSPSC Code | 23241635 |
