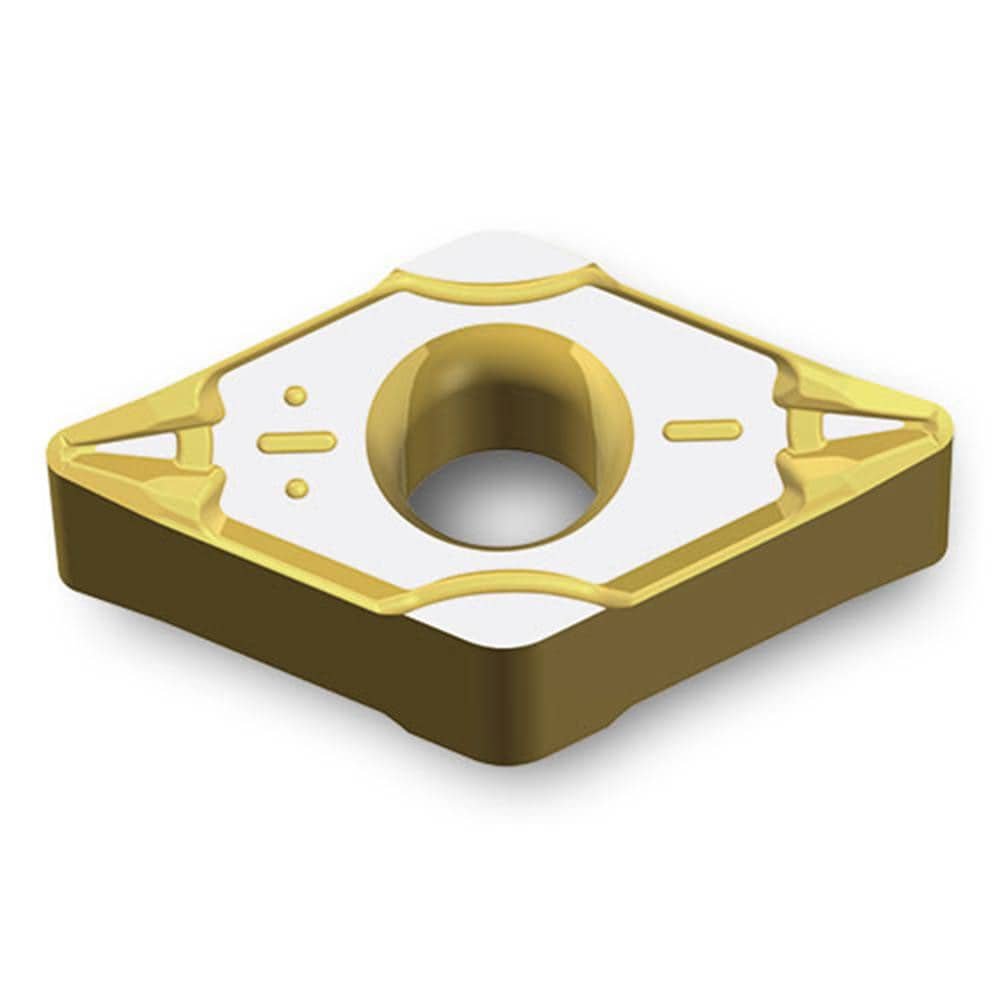

Turning Insert: DNMG3.53.51FS TT8125B, Carbide
Item #: 29893781
Brand: Ingersoll Cutting Tools
Model #: 6212523
Product Specifications
| ANSI Insert Code | DNMG3.53.51 |
| ISO Insert Code | DNMG130504 |
| Relief Angle | 0 |
| Insert Style | DNMG |
| Corner Radius (Decimal Inch) | 0.0160 |
| Included Angle | 55 |
| Manufacturer Grade | TT8125B |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.2190 |
| Series | DNMG |
| Inscribed Circle (Decimal Inch) | 0.4380 |
| Insert Material | Carbide |
| Insert Shape | D - Diamond (Rhombic) 55-Deg |
| Chip Breaker Operation | Finishing |
| Grade Characteristics | Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Negative |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | D |
| Maximum Depth of Cut (Decimal Inch) | 0.0800 |
| Insert Holding Method | Clamp |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | CVD |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.5330 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Iso Code | DNMG130504FS TT8125B |
| Chip Breaker | FS |
| ANSI Size Code | 3.53.51 |
| ISO Size Code | 130504 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 3.53.51 |
