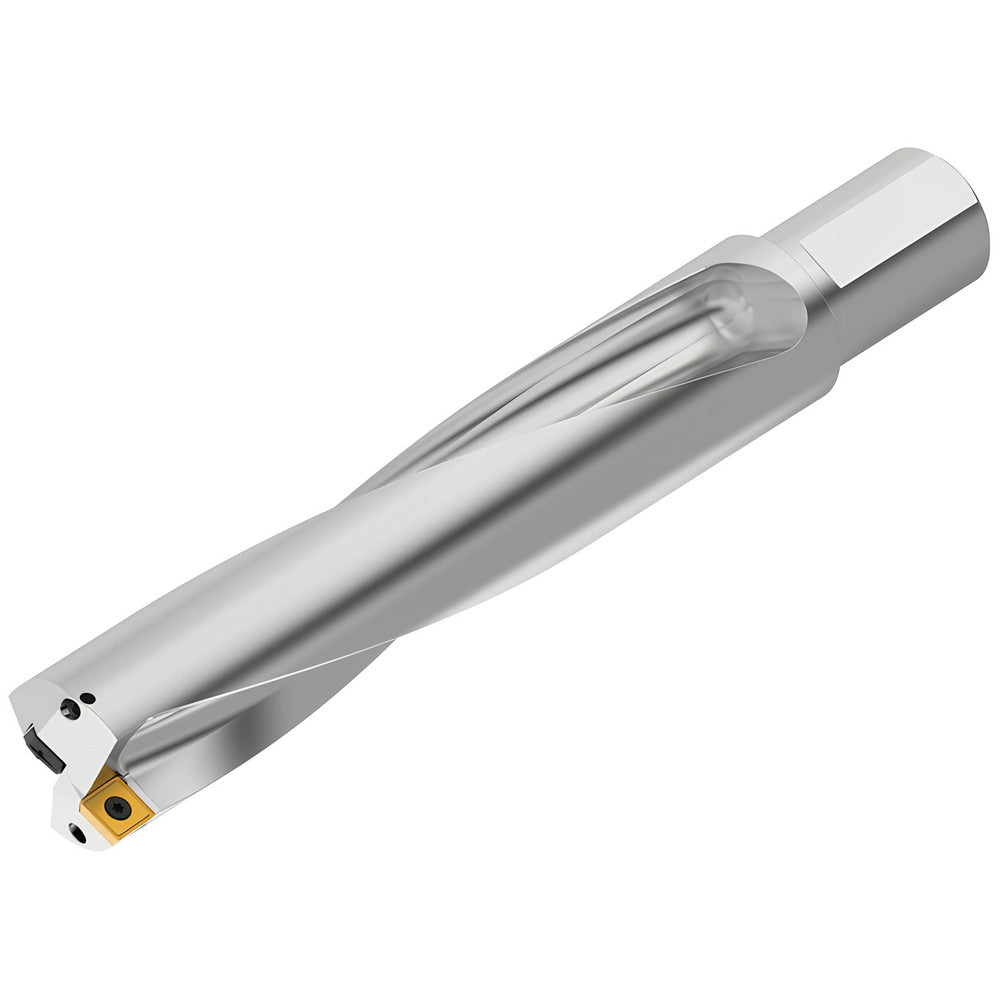

Indexable Insert Drill: DFPR1531R5WB150, 39.88 mm Max Dia, 194.44 mm Max Depth, 5xD, 38.10 mm Shank Dia
Item #: 04806980
Brand: Kennametal
Model #: 7031250
Product Specifications
| Compatible Drill Style | DFPR |
| Maximum Drill Diameter (mm) | 39.88 |
| Maximum Drill Diameter (Decimal Inch) | 1.5700 |
| Maximum Drill Depth (Decimal Inch) | 7.6550 |
| Maximum Drill Depth (mm) | 194.44 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1-1/2 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Shank Diameter (mm) | 38.10 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 7.0000 to 10.0000 |
| Maximum Drill Depth Range (mm) | 150.00 to 200.00 |
| Tool Material | Steel |
| Compatible Insert Style | DFPR |
| Compatible Insert Size Code | 140406; 140408 |
| Drill Depth by Diameter Ratio | 5xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 11.4330 |
| Series | DFPR |
| Flute Length (Decimal Inch) | 7.6550 |
| Flute Length (mm) | 199.44 |
| Body Length | 290.44 |
| Body Length (Decimal Inch) | 8.6780 |
| Shank Length (Decimal Inch) | 2.7550 |
| Shank Length (mm) | 70.00 |
| Coolant Hole Thread Size | "1/4-18 NPT" |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.5330x0.1730; 0.5690x0.1730 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | DFPR140406__I; DFPR140408__O |
| Collar Diameter (Decimal Inch) | 1.4874 |
| Collar Diameter (mm) | 37.78 |
| Body Side Coolant Hole Thread Size (Inch) | 1/4-18 |
| Shank End Coolant Hole Thread Size (Inch) | 1/4-18 |
| Insert Lock Screw | M4.5-0.75x10.2T15 |
| Coolant Through | Yes |
