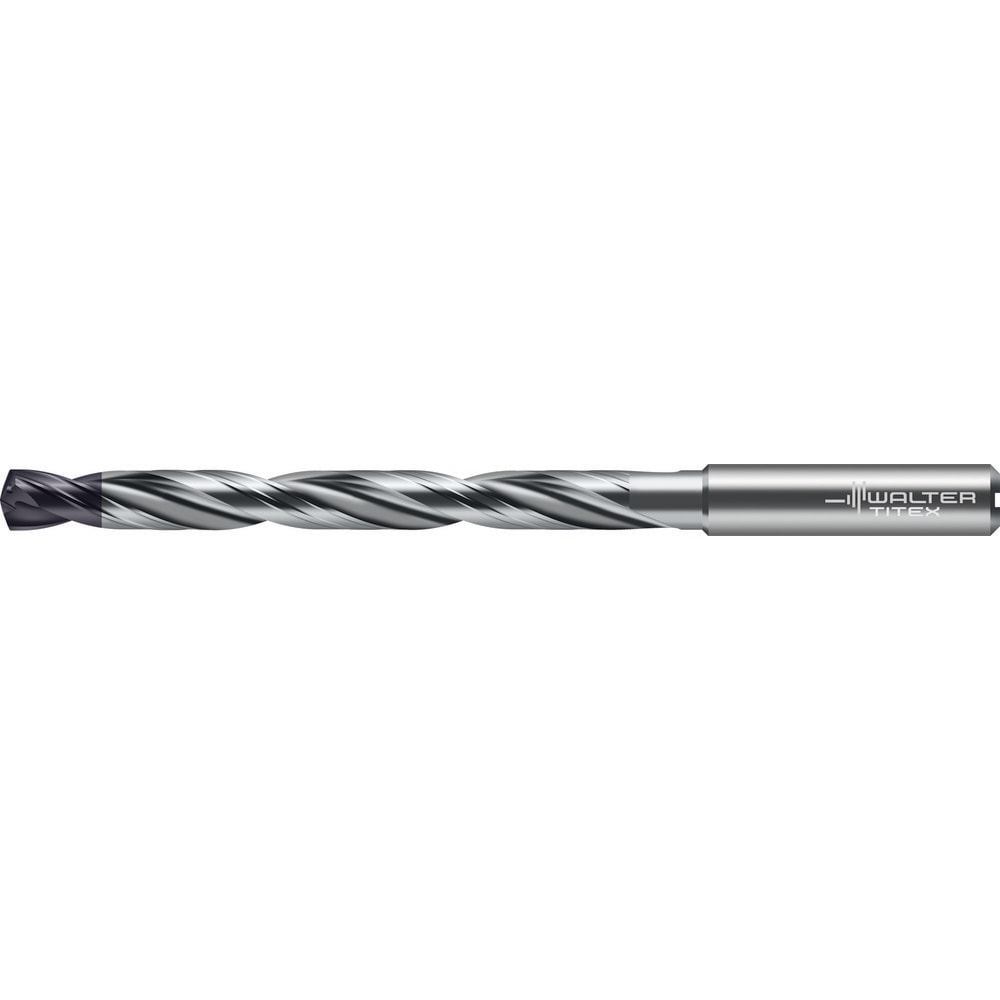

Jobber Length Drill Bits; Drill Bit Size (Inch): 9/16; Drill Bit Size (mm): 14.29; Drill Bit Size (Decimal Inch): 0.5626; Drill Bit Material: Solid Carbide; Drill Point Angle (Degrees): 140; Coating/Finish: ZrN
Item #: 84168954
Brand: Walter-Titex
Model #: 8325195
Product Specifications
| Drill Bit Size (Inch) | 9/16 |
| Drill Bit Size (mm) | 14.29 |
| Drill Bit Size (Decimal Inch) | 0.5626 |
| Drill Bit Material | Solid Carbide |
| Drill Point Angle (Degrees) | 140 |
| Coating/Finish | ZrN |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | Standard |
| Coolant Through | Yes |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Overall Length (mm) | 204.00 |
| Overall Length (Decimal Inch) | 8.0315 |
| Spiral Type | Regular |
| Flute Length (mm) | 152.00 |
| Flute Length (Decimal Inch) | 5.9843 |
| Series | DC180 |
| Flute By Diameter Ratio | 8xD |
| Shank Diameter (mm) | 16 |
| Maximum Drilling Depth (Decimal Inch) | 5.3543 |
| Maximum Drilling Depth (mm) | 136 |
| Shank Length (mm) | 48 |
| Shank Length (Decimal Inch) | 1.8898 |
| Drill Point Length (mm) | 2.60 |
| Drill Point Length (Decimal Inch) | 0.1024 |
| Drill Bit Diameter Tolerance | m7 |
| Shank Type | Cylindrical |
| UNSPSC Code | 23241605 |
| Country of Origin | UNITED STATES |
