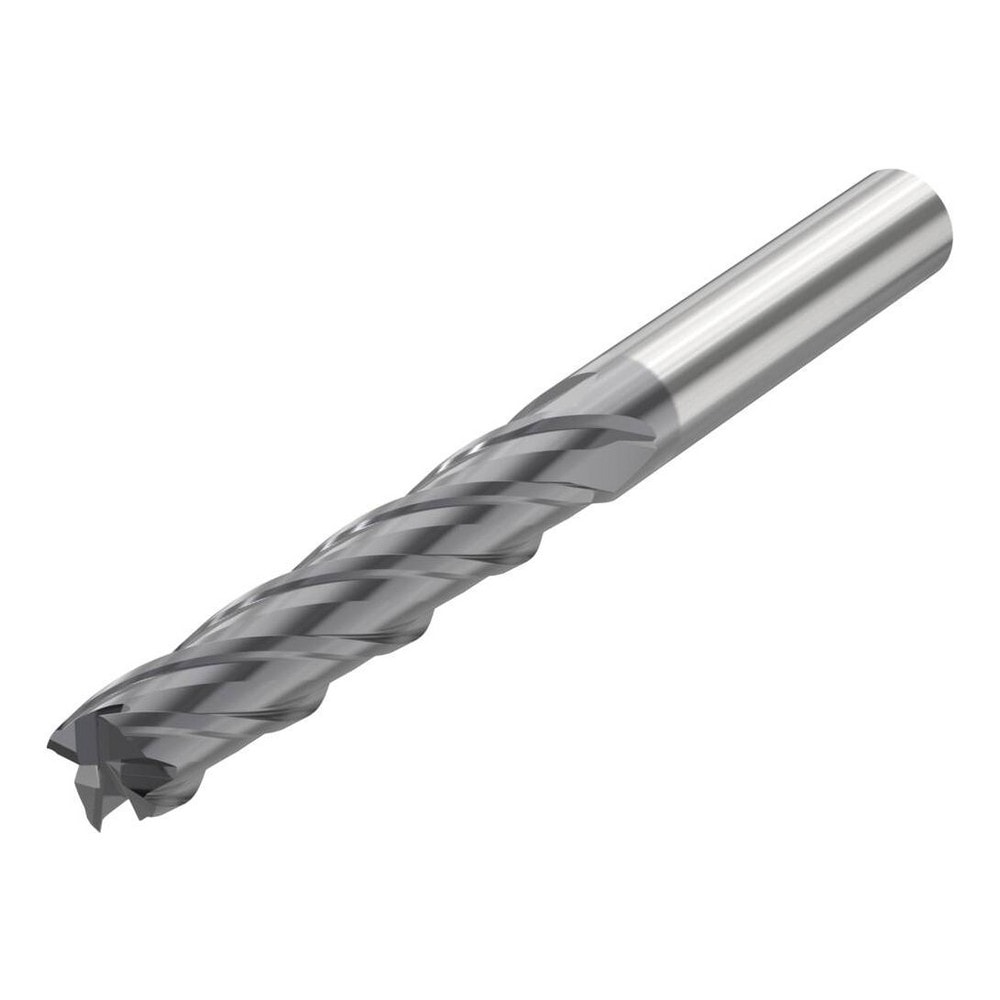

Corner Chamfer End Mill: 20.00 mm Dia, 100.00 mm LOC, 4 Flute, 0.20 mm Chamfer Width, Solid Carbide
Item #: 82876442
Brand: Seco
Model #: 10201480
Product Specifications
| Mill Diameter (mm) | 20.00 |
| Number Of Flutes | 4 |
| Length of Cut (mm) | 100.00 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Coating/Finish | SIRON-A |
| Centercutting | No |
| Flute Direction | Right Hand |
| Variable Index | No |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Chamfer Width (mm) | 0.20 |
| Overall Length (mm) | 170.00 |
| Coolant Through | No |
| Pitch | Normal |
| Chamfer Angle | 45.000 |
| Length Type | Regular |
| Flute Type | Helical |
| Extended Reach | No |
| Shank Type | Cylindrical |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (mm) | 20.00 |
| Reach Length (mm) | 100.00 |
| Mill Diameter Tolerance | -0.073 mm |
| Shank Diameter Tolerance | -0.04 mm |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | P; S; K; M |
| Series | JSE514 |
| Coating Classification | PVD |
| Chamfer Length (mm) | 0.20 |
| Helix Style | Medium |
| Manufacturers Catalog Number | 10201480 |
| Country of Origin | Netherlands |
