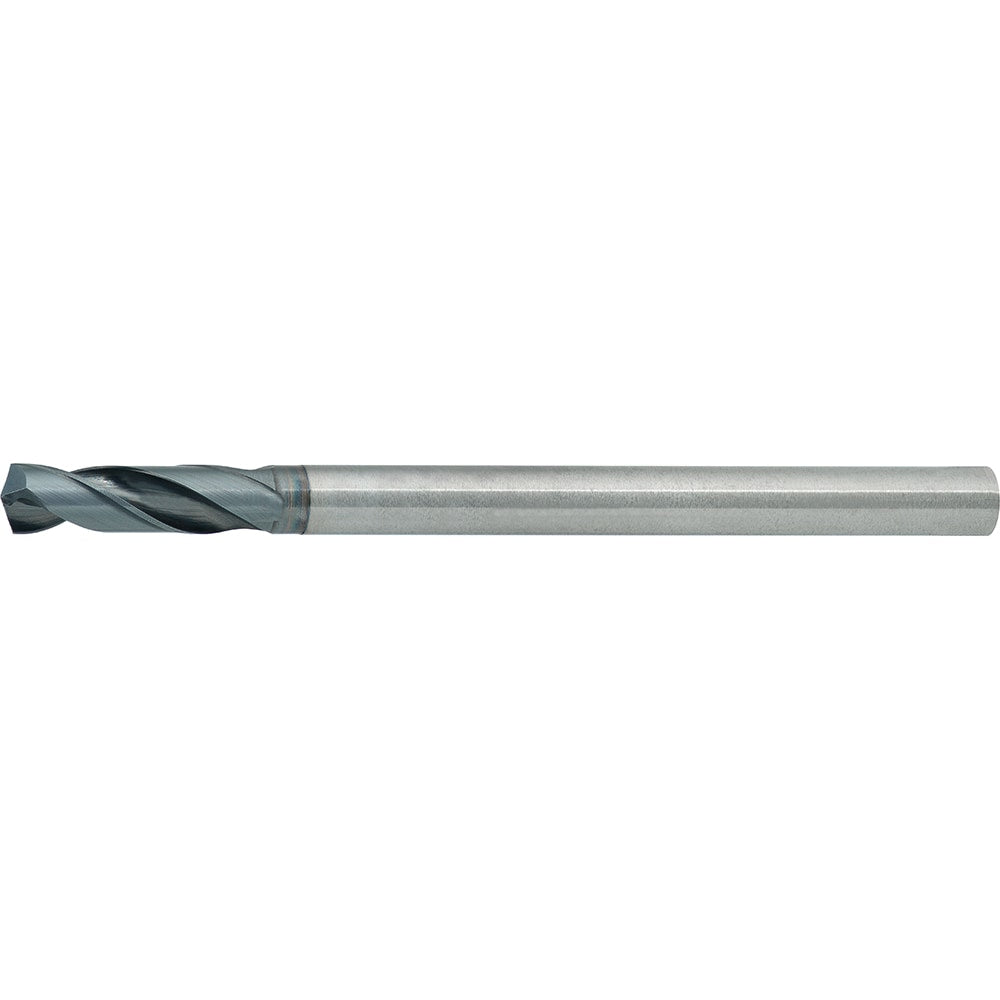

Jobber Drill: 13.50 mm Dia, 140 deg Point, Solid Carbide
Item #: 05922794
Brand: Mitsubishi
Model #: 10609514
Product Specifications
| Drill Bit Size (mm) | 13.50 |
| Drill Bit Size (Decimal Inch) | 0.5315 |
| Drill Bit Material | Solid Carbide |
| Drill Point Angle (Degrees) | 140 |
| Coating/Finish | TiAlN |
| Flute Type | Helical |
| Cutting Direction | Right Hand |
| Point Type | X-Thinned |
| Primary Workpiece Material | High-Temp Alloy |
| Coolant Through | Yes |
| Primary Workpiece Material Code | S |
| Shank Diameter (Decimal Inch) | 0.5512 |
| Overall Length (mm) | 149.50 |
| Overall Length (Decimal Inch) | 5.8858 |
| Flute Length (mm) | 92.50 |
| Flute Length (Decimal Inch) | 3.6417 |
| Series | DWAE |
| Tool Application | Drilling; Cross Hole; Stack Drilling |
| Flute By Diameter Ratio | 4xD |
| Shank Diameter (mm) | 14 |
| Maximum Drilling Depth (Decimal Inch) | 2.2244 |
| Maximum Drilling Depth (mm) | 56.50 |
| Shank Length (mm) | 55 |
| Shank Length (Decimal Inch) | 2.1654 |
| Drill Point Length (mm) | 2.50 |
| Drill Point Length (Decimal Inch) | 0.0984 |
| Web Thinning | X-Thinned |
| Web Configuration | Parallel |
| Shank Type | Straight |
| Drill Bit Grade | High Precision; High Performance |
| Specification Designation | ISO |
| UNSPSC Code | 23241634 |
