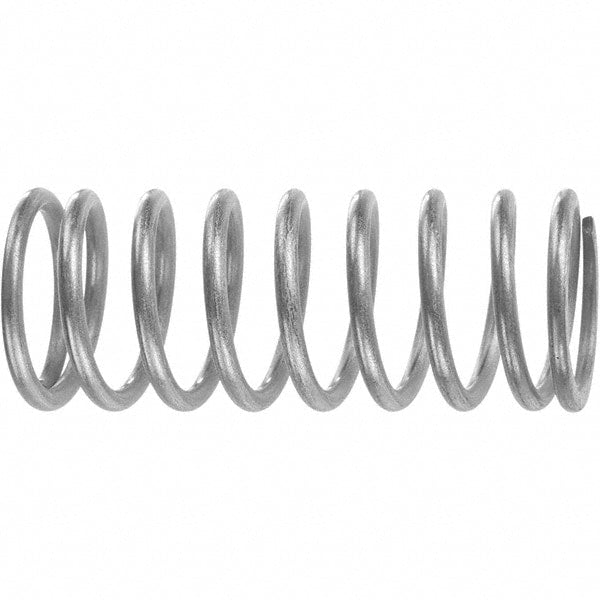

Precision Compression Spring: 0.8200" OD, 3-3/4" Free Length
Item #: 94850302
Brand: Associated Spring Raymond
Model #: C0823-085-3750S
Product Specifications
| Outside Diameter (Decimal Inch - 4 Decimals) | 0.8200 |
| Free Length (Inch) | 3-3/4 |
| Spring Rate | 12.4 |
| End Type | Ground; Square |
| Maximum Work Load (Lb.) | 23.40 |
| Material | Stainless Steel |
| Finish | Plain |
| Wire Size (Decimal Inch) | 0.0850 |
| Hole Diameter (Decimal Inch) | 0.6500 |
| Spring Type | Precision |
| Solid Height (Decimal Inch) | 1.3500 |
| Free Length (Decimal Inch) | 3.7500 |
| Color | Silver |
| Standards | AMS 5688; ASTM A313 |
| UNSPSC Code | 31161904 |
| Country of Origin | China |
