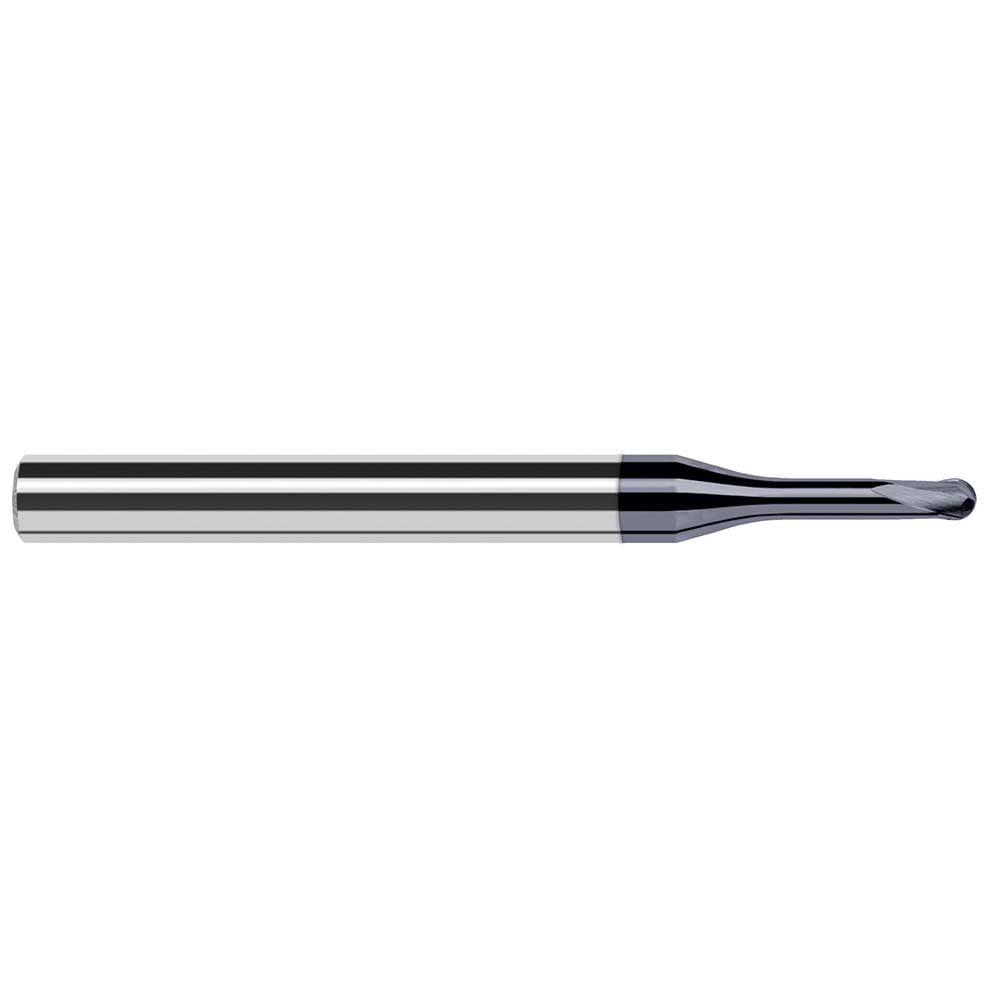

Ball End Mill: 3/32" Dia, 0.0740" LOC, 2 Flute, Solid Carbide
Item #: 51526812
Brand: Harvey Tool
Model #: 38793-C6
Product Specifications
| Mill Diameter (Inch) | 3/32 |
| Mill Diameter (Decimal Inch) | 0.0930 |
| Number Of Flutes | 2 |
| End Mill Material | Solid Carbide |
| Coating/Finish | AlTiN Nano |
| Overall Length (Inch) | 2-1/2 |
| Shank Diameter (Inch) | 1/4 |
| Extended Reach | Yes |
| Variable Helix | No |
| Variable Index | No |
| Helix Angle | 20 |
| Overall Length (Decimal Inch) | 2.5000 |
| Chipbreaker | No |
| Undercutting | No |
| Length Of Cut Range (Decimal Inch) | 0.0500 - 0.1000 |
| Length Type | Stub |
| Material Removal Type | Finishing |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Nose Radius (Decimal Inch) | 0.0465 |
| Neck Length (Decimal Inch) | 0.4260 |
| Reach Length (Inch) | 1/2 |
| Reach Length (Decimal Inch) | 0.5000 |
| Mill Diameter Tolerance | +0.0000/-0.0006 in |
| Shank Diameter Tolerance | h6 |
| Primary Workpiece Material | Hard Material |
| Primary Workpiece Material Code | H |
| Secondary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Secondary Workpiece Material Code | P; K; M |
| Material Grade | Carbide |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | End Mills for Hardened Steels - Finishers - Ball, Material Specific End Mills |
| Flute Type | Spiral |
| UNSPSC Code | 27112803 |
| Centercutting | Yes |
| Coating Classification | PVD |
| Single Or Double End | Single |
| Shank Type | Straight-Cylindrical |
| Pitch | Coarse |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.0740 |
| Manufacturers Catalog Number | 38793-C6 |
| System Of Measurement | Decimal Inch |
