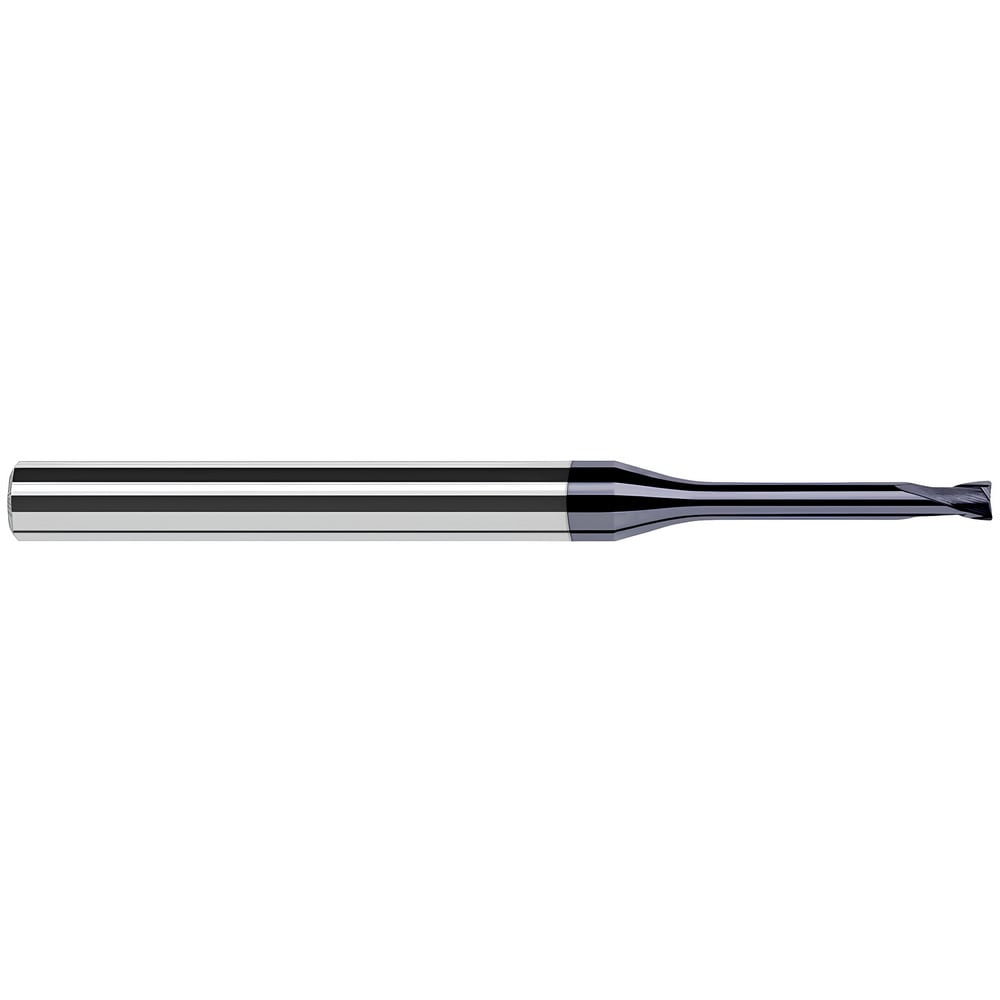

Corner Radius End Mill: 0.0250" Dia, 0.50 mm LOC, 0.10 mm Radius, 2 Flute, Solid Carbide
Item #: 39741442
Brand: Harvey Tool
Model #: 40625-C6
Product Specifications
| Mill Diameter (Decimal Inch) | 0.0250 |
| Number Of Flutes | 2 |
| Length of Cut (mm) | 0.50 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | AlTiN |
| Overall Length (Inch) | 2-1/2 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0040 |
| Variable Index | No |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Corner Radius (mm) | 0.10 |
| Coolant Through | No |
| Pitch | Coarse |
| Overall Length (Decimal Inch) | 2.5 |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.0200 |
| Length Type | Extended |
| Flute Type | Spiral |
| Extended Reach | Yes |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Finishing |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Shank Diameter (Inch) | 1/4 |
| Reach Length (Decimal Inch) | 0.1250 |
| Reach Length (Inch) | 1/8 |
| Corner Radius Tolerance | 0.0002 to -0.0002 in |
| Mill Diameter Tolerance | 0.0000/-0.0006 in |
| Shank Diameter Tolerance | h6 |
| Overall Length Tolerance | 0.0100/-0.0000 in |
| Primary Workpiece Material | Hard Material; Stainless Steel; Cast Iron; Steel |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | P; H; K; M |
| Series | End Mills for Hardened Steels - Finishers - Corner Radius; Material Specific End Mills |
| Material Application | Stainless Steel; Cast Iron; Hard Alloy; Steel |
| Coating Classification | PVD |
| For Use With. | High Precision Toolholders |
