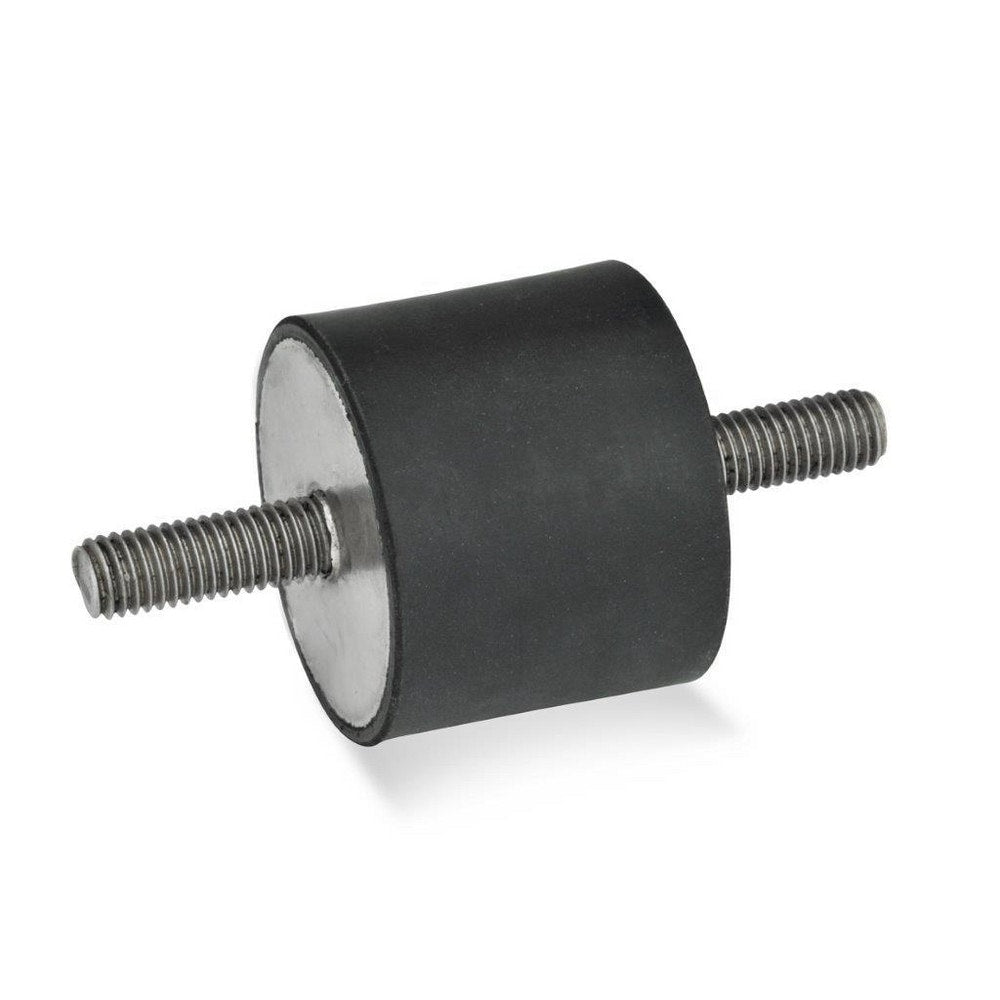

Vibration Isolators; Isolator Type: Stud/Stud; Insert Material: Stainless Steel; Isolator Material: Natural Rubber; Maximum Load Capacity: 4170.00 N; Top Diameter: 60.00; Bottom Diameter: 60; Thread Size: M10x1.5; Overall Width: 60 mm
Item #: 69312460
Brand: J.W. Winco
Model #: 451-60-30-M10-SS-55
Product Specifications
| Isolator Type | Stud/Stud |
| Insert Material | Stainless Steel |
| Isolator Material | Natural Rubber |
| Maximum Load Capacity | 4170.00 N |
| Top Diameter | 60.00 |
| Bottom Diameter | 60 |
| Thread Size | M10x1.5 |
| Overall Width | 60 mm |
| Overall Diameter | 60 mm |
| Thread Length (Decimal Inch) | 1.1000 |
| Deflection | 0.3000 |
| Hardness Rating | Shore 55A |
| Mount Type | Stud |
| Shape | Round |
| Thread Pitch | 1.5 mm |
| Thread Standard | Metric |
| Height (Decimal Inch) | 86 mm |
| UNSPSC Code | 23153130 |
| Isolator Type | Stud/Stud |
| Insert Material | Stainless Steel |
| Isolator Material | Natural Rubber |
| Maximum Load Capacity | 4170.00 N |
| Top Diameter | 60.00 |
| Bottom Diameter | 60 |
| Thread Size | M10x1.5 |
| Overall Width | 60 mm |
| Overall Diameter | 60 mm |
| Thread Length (Decimal Inch) | 1.1000 |
| Deflection | 0.3000 |
| Hardness Rating | Shore 55A |
| Mount Type | Stud |
| Shape | Round |
| Thread Pitch | 1.5 mm |
| Thread Standard | Metric |
| Height (Decimal Inch) | 86 mm |
| UNSPSC Code | 23153130 |
| MSC Part # | 69312460 |
| Mfr Part # | 451-60-30-M10-SS-55 |
| Country of Origin Country of Origin is subject to change | Hungary |
