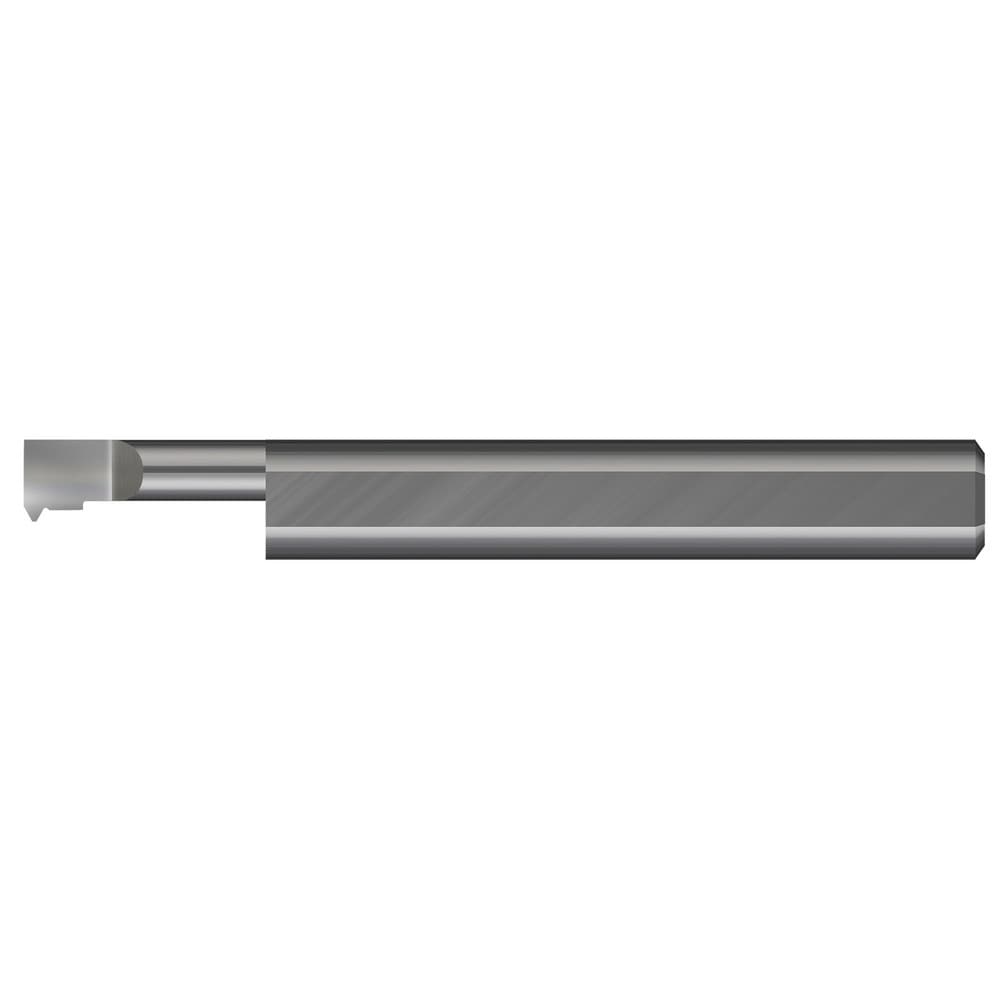

Single Point Threading Tools; Thread Type: Internal, External; Material: Solid Carbide; Profile Angle: 60; Threading Diameter (mm): 8.00; Cutting Depth (mm): 24.00; Cutting Depth (Decimal Inch): 0.9449
Item #: 78114741
Brand: Micro 100
Model #: TMT-100150-24
Product Specifications
| Thread Type | Internal; External |
| Material | Solid Carbide |
| Profile Angle | 60 |
| Threading Diameter (mm) | 8.00 |
| Cutting Depth (mm) | 24.00 |
| Cutting Depth (Decimal Inch) | 0.9449 |
| Minimum Pitch (mm) | 1.50 |
| Maximum Pitch (mm) | 1.50 |
| Shank Diameter (mm) | 0.3100 |
| Thread Direction | Right Hand |
| Projection from Edge (mm) | 0.81 |
| Overall Length (mm) | 2.0000 |
| Overall Length (Decimal Inch) | 0.0787 |
| Coating/Finish | Uncoated |
| Coolant Through | No |
| UNSPSC Code | 23242117 |
| Country of Origin | UNITED STATES |
