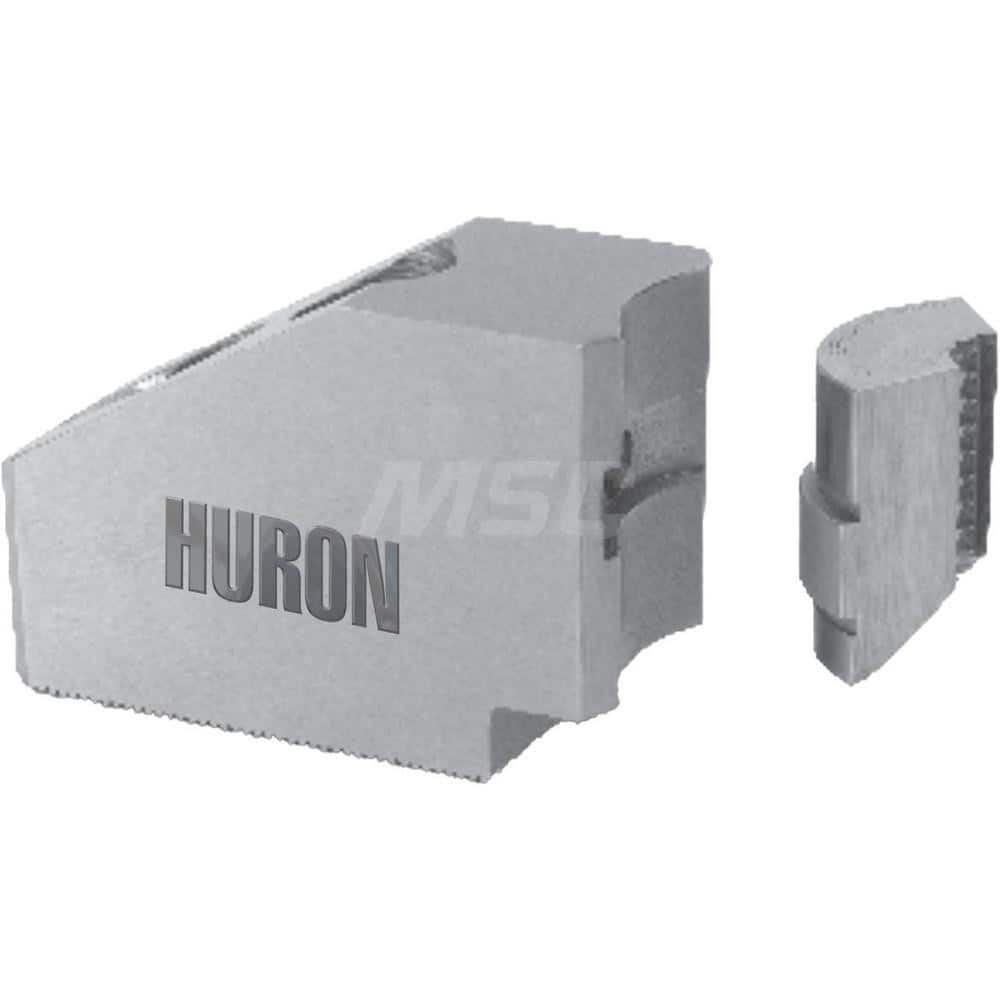

Huron Machine Products - Hard Lathe Chuck Jaws; Jaw Type: Collet Pad Jaw ; Jaw Interface Type: 1.5mm x 60 Serrated ; Maximum Compatible Chuck Diameter (Inch): 8 ; Material: 1018 Steel ; Overall Width/Diameter (Inch): 2 ; Overall Length (Decimal Inch): 2.
Item #: 57407074
Brand: Huron Machine Products
Model #: B208CPJ1022
Product Specifications
Hard Lathe Chuck Jaws; Jaw Type: Collet Pad Jaw ; Jaw Interface Type: 1.5mm x 60 Serrated ; Maximum Compatible Chuck Diameter (Inch): 8 ; Material: 1018 Steel ; Overall Width/Diameter (Inch): 2 ; Overall Length (Decimal Inch): 2.73000
| Jaw Type | Collet Pad Jaw |
| Jaw Interface Type | 1.5mm x 60 Serrated |
| Maximum Compatible Chuck Diameter (Inch) | 8 |
| Material | 1018 Steel |
| Overall Width/Diameter (Inch) | 2 |
| Overall Length (Decimal Inch) | 2.73000 |
| Minimum Compatible Chuck Diameter (Inch) | 8 |
| Groove Width (Decimal Inch) | 0.5510 |
| Number of Jaws | 1 |
| Overall Height (Inch) | 2-3/4 |
| Fastener Size (mm) | M12 |
| Distance Between Mount Hole Centers (Decimal Inch) | 0.9840 |
