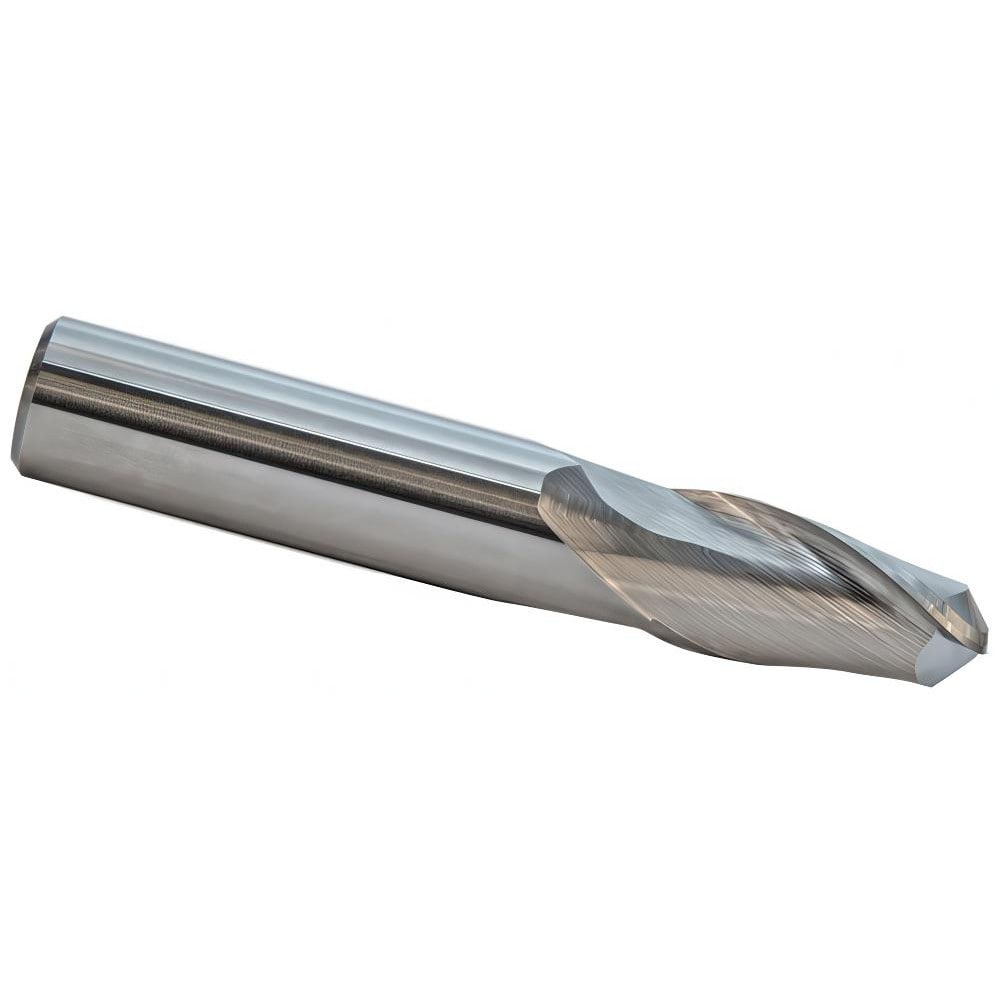

Ball End Mill: 0.0984" Dia, 12.00 mm LOC, 2 Flute, Solid Carbide
Item #: 96761861
Brand: M.A. Ford
Model #: 15009840
Product Specifications
| Mill Diameter (Decimal Inch) | 0.0984 |
| Number Of Flutes | 2 |
| End Mill Material | Solid Carbide |
| Length of Cut (mm) | 12.00 |
| Coating/Finish | Bright/Uncoated |
| Extended Reach | No |
| Variable Helix | No |
| Variable Index | No |
| Helix Angle | 30 |
| Overall Length (mm) | 38.00 |
| Chipbreaker | No |
| Undercutting | No |
| Length Of Cut Range (Decimal Inch) | 0.4000 - 0.7000 |
| Length Type | Standard |
| Shank Diameter (mm) | 3.00 |
| Nose Radius (mm) | 1.25 |
| Nose Radius (Decimal Inch) | 0.0492 |
| Mill Diameter Tolerance | +0.000/-0.040 mm |
| Maximum Helix Angle | 30 |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | 150 |
| Flute Type | Spiral |
| UNSPSC Code | 27112803 |
| Single Or Double End | Single |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.4724 |
| Country of Origin | UNITED STATES |
