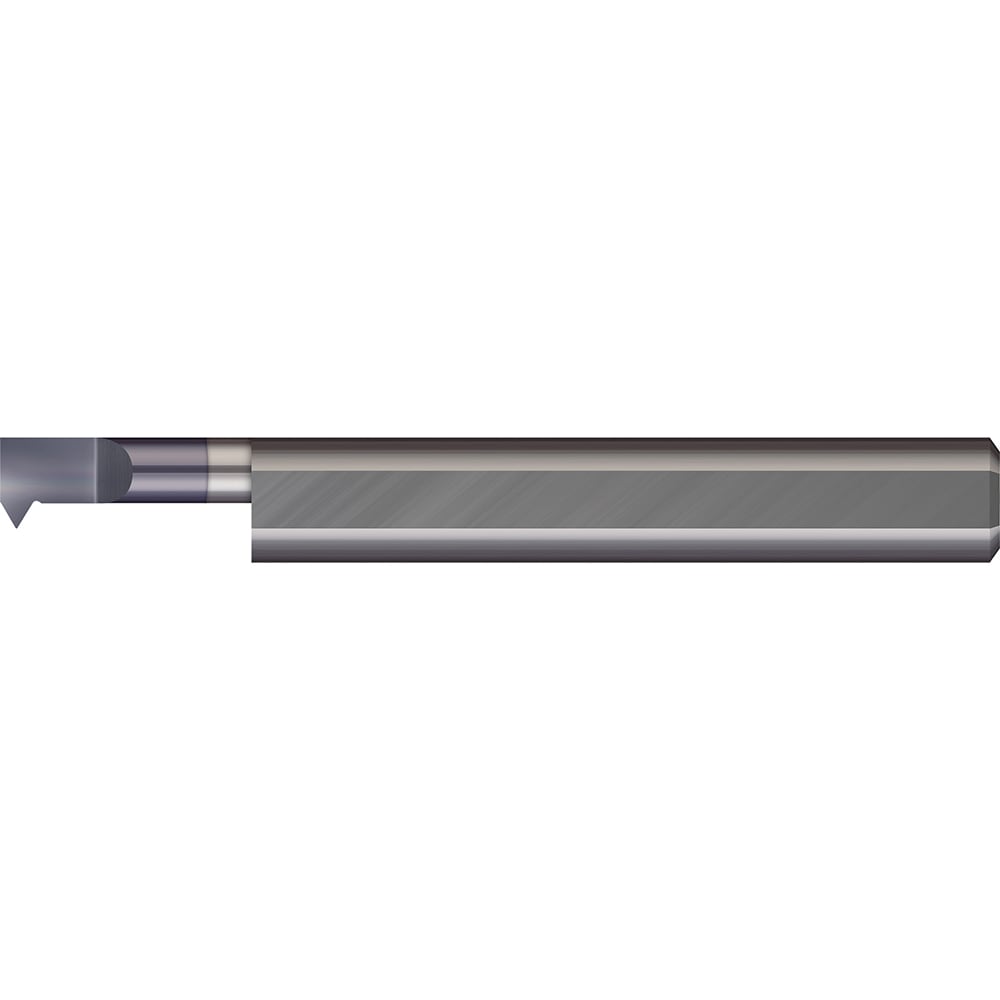

Single Point Threading Tools; Thread Type: Internal, External; Material: Solid Carbide; Profile Angle: 60; Threading Diameter (Decimal Inch): 0.3820; Cutting Depth (Decimal Inch): 2.0000; Maximum Threads Per Inch: 32
Item #: 84676196
Brand: Micro 100
Model #: IT-3602000X
Product Specifications
| Thread Type | Internal; External |
| Material | Solid Carbide |
| Profile Angle | 60 |
| Threading Diameter (Decimal Inch) | 0.3820 |
| Cutting Depth (Decimal Inch) | 2.0000 |
| Maximum Threads Per Inch | 32 |
| Minimum Threads Per Inch | 7 |
| Shank Diameter (Inch) | 3/8 |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Thread Direction | Right Hand |
| Projection from Edge (Decimal Inch) | 0.0850 |
| Overall Length (Decimal Inch) | 4.0000 |
| Overall Length (Inch) | 4 |
| Manufacturer's Part Number | IT-3602000X |
| Maximum Reach (Decimal Inch) | 2.0000 |
| Coating/Finish | AlTiN |
| Coolant Through | No |
| UNSPSC Code | 23242117 |
| Country of Origin | UNITED STATES |
