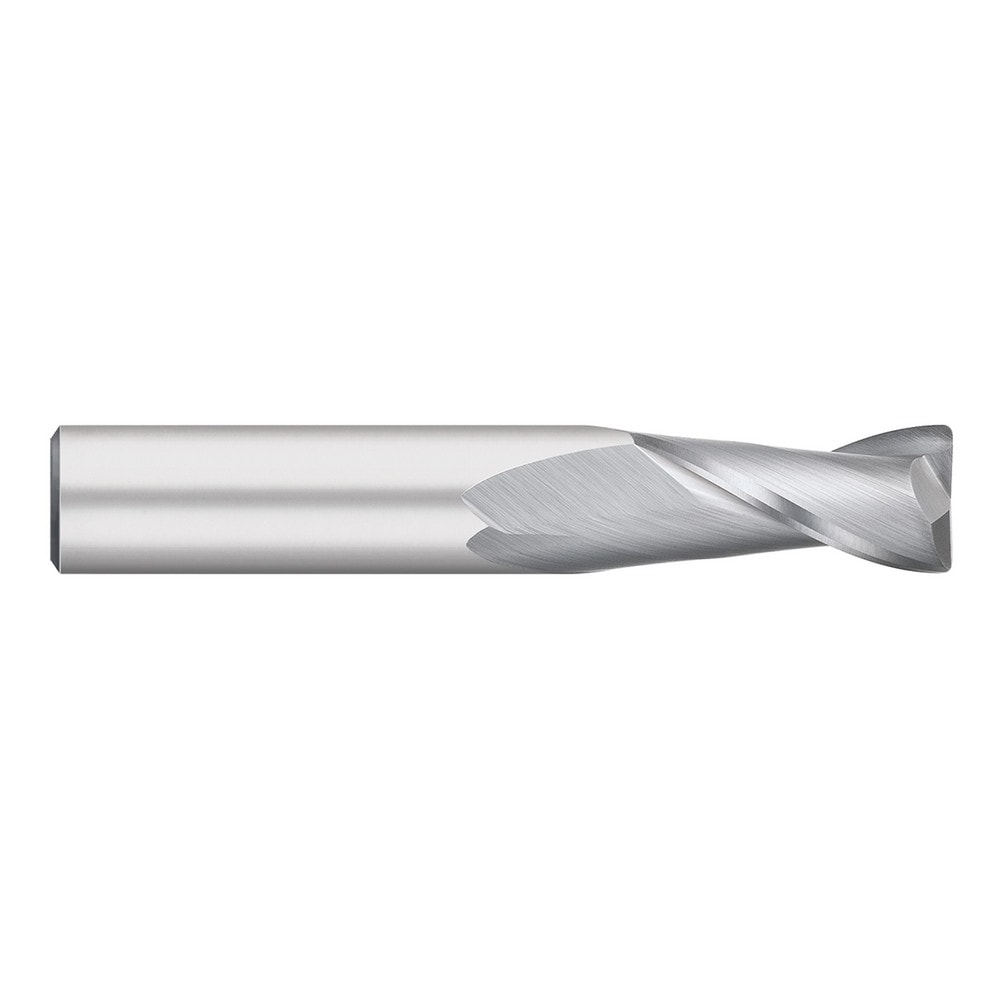

Corner Radius End Mill: 5/16" Dia, 13/16" LOC, 0.0300" Radius, 2 Flute, Solid Carbide
Item #: 07270788
Brand: Titan USA
Model #: TC72029
Product Specifications
| Mill Diameter (Inch) | 5/16 |
| Mill Diameter (Decimal Inch) | 0.3125 |
| Number Of Flutes | 2 |
| Length of Cut (Inch) | 13/16 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Overall Length (Inch) | 2-1/2 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0300 |
| Variable Index | No |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Overall Length (Decimal Inch) | 2.5000 |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.8125 |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Decimal Inch) | 0.3125 |
| Shank Diameter (Inch) | 5/16 |
| UNSPSC Code | 27112803 |
| Series | General Purpose End Mills - Carbide - 2 Flute - Corner Radius - 30° Helix |
