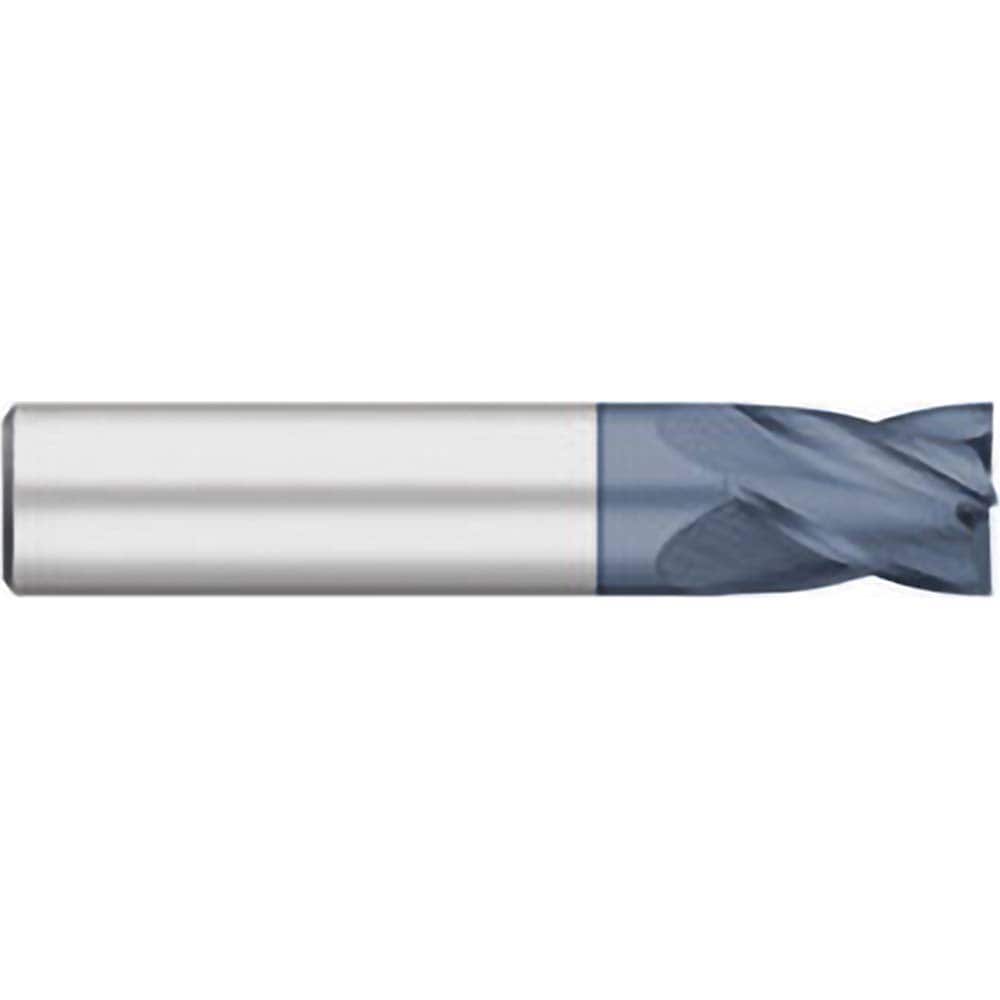

Square End Mill: 1/32" Dia, 1/16" LOC, 4 Flute, Solid Carbide
Item #: 07254790
Brand: Titan USA
Model #: TC10902
Product Specifications
| Mill Diameter (Decimal Inch) | 0.0313 |
| Mill Diameter (Inch) | 1/32 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 0.0625 |
| Length of Cut (Inch) | 1/16 |
| Shank Diameter (Inch) | 1/8 |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Overall Length (Decimal Inch) | 1.5000 |
| Overall Length (Inch) | 1-1/2 |
| Single Or Double End | Single |
| Coating/Finish Family | AlTiN |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 30 |
| Primary Workpiece Material | Aluminum & Non-Ferrous; High-Temp Alloy; Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; S; K; M; N |
| Coating/Finish | AlTiN |
| Variable Helix | No |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Material Grade | Micrograin |
| Series | General Purpose End Mills - Carbide - 4 Flute - Square - 30 deg Helix |
| System Of Measurement | Fractional Inch |
| UNSPSC Code | 27112803 |
| Mill Diameter (Decimal Inch) | 0.0313 |
| Mill Diameter (Inch) | 1/32 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 0.0625 |
| Length of Cut (Inch) | 1/16 |
| Shank Diameter (Inch) | 1/8 |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Overall Length (Decimal Inch) | 1.5000 |
| Overall Length (Inch) | 1-1/2 |
| Single Or Double End | Single |
| Coating/Finish Family | AlTiN |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 30 |
| Primary Workpiece Material | Aluminum & Non-Ferrous; High-Temp Alloy; Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; S; K; M; N |
| Coating/Finish | AlTiN |
| Variable Helix | No |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Material Grade | Micrograin |
| Series | General Purpose End Mills - Carbide - 4 Flute - Square - 30 deg Helix |
| System Of Measurement | Fractional Inch |
| UNSPSC Code | 27112803 |
| MSC Part # | 07254790 |
| Mfr Part # | TC10902 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
