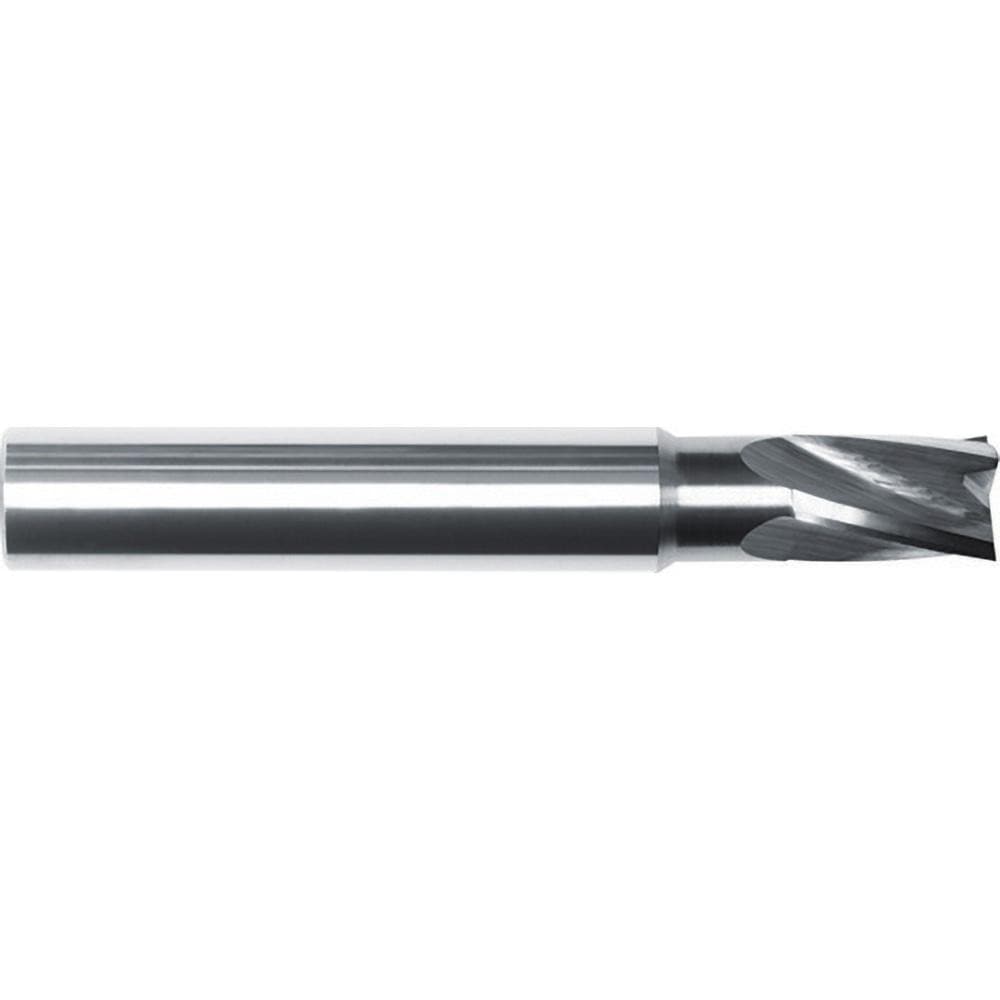

Corner Chamfer End Mill: 3/16" Dia, 1/4" LOC, 4 Flute, Solid Carbide
Item #: 06851885
Brand: Internal Tool
Model #: 45-3120-C
Product Specifications
| Mill Diameter (Inch) | 3/16 |
| Mill Diameter (Decimal Inch) | 0.1870 |
| Number Of Flutes | 4 |
| Length of Cut (Inch) | 1/4 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | AlTiN |
| Overall Length (Inch) | 2-1/2 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Variable Index | No |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Overall Length (Decimal Inch) | 2.5000 |
| Chipbreaker | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.2500 |
| Length Type | Regular |
| Flute Type | Spiral |
| Extended Reach | Yes |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Decimal Inch) | 0.1870 |
| Shank Diameter (Inch) | 3/16 |
| Neck Diameter (Decimal Inch) | 0.1560 |
| Reach Length (Decimal Inch) | 0.7500 |
| Reach Length (Inch) | 3/4 |
| Primary Workpiece Material | Non-Ferrous Metal; Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Plastic; Steel |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Material Grade | Micrograin |
| Series | 45 |
| Helix Style | Medium |
