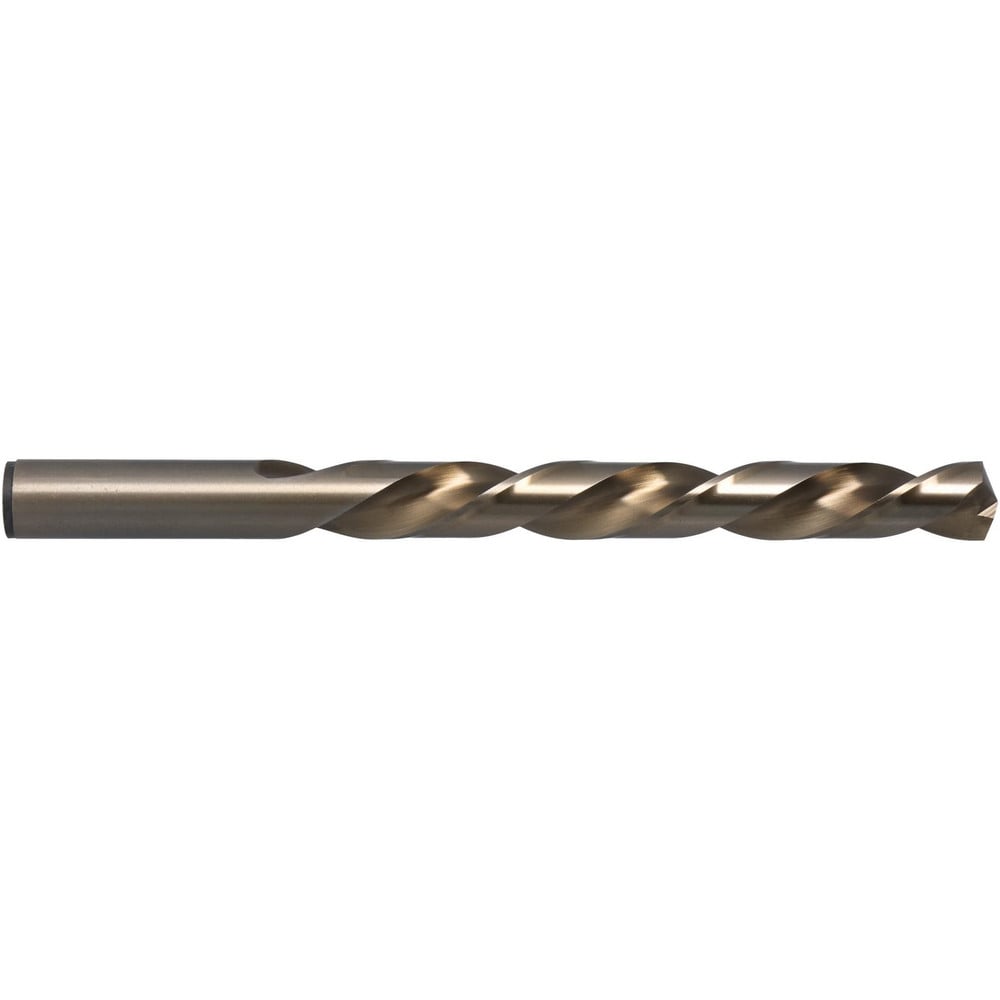

Jobber Drill: 13/64" Dia, 135 deg Point, Cobalt
Item #: 04853545
Brand: Chicago-Latrobe
Model #: 46513
Product Specifications
| Drill Bit Size (Inch) | 13/64 |
| Drill Bit Size (mm) | 5.16 |
| Drill Bit Size (Decimal Inch) | 0.2031 |
| Drill Bit Material | Cobalt |
| Drill Point Angle (Degrees) | 135 |
| Coating/Finish | Straw |
| Flute Type | Regular Spiral |
| Cutting Direction | Left Hand |
| Point Type | Split Point |
| Primary Workpiece Material | High-Temp Alloy; Cast Iron; Steel |
| Coolant Through | No |
| Number of Flutes | 2 |
| Flute Length (Inch) | 2-7/16 |
| Primary Workpiece Material Code | P; K |
| Shank Diameter (Decimal Inch) | 0.2031 |
| Overall Length (mm) | 92.07 |
| Overall Length (Inch) | 3-5/8 |
| Overall Length (Decimal Inch) | 3.6250 |
| Spiral Type | Regular |
| Flute Length (mm) | 61.91 |
| Flute Length (Decimal Inch) | 2.4375 |
| Series | 550L |
| Tool Application | Drilling; Holemaking; Self-Centering |
| Flute By Diameter Ratio | 3xD |
| Shank Diameter (Inch) | 13/64 |
| Shank Diameter (mm) | 5.16 |
| Shank Length (mm) | 30.16 |
| Shank Length (Decimal Inch) | 1.1875 |
| Shank Length (Inch) | 1-3/16 |
| Number of Flats | 0 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight |
| Double Margin | No |
| Drill Bit Grade | Heavy Duty |
| Material Grade | M42 |
| Specification Designation | ANSI |
| UNSPSC Code | 23241634 |
