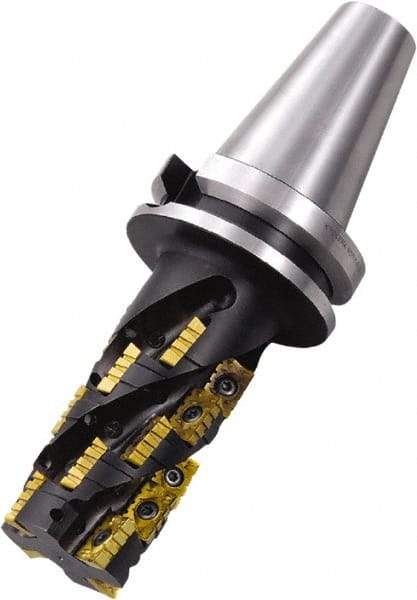

Kyocera - 16 Inserts, 80mm Cut Diam, 14mm Arbor Diam, 90mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, 115mm High, APMT 2506 Insert Compatibility
Item #: 57155723
Brand: Kyocera
Model #: 8820937
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 80.00 |
| Cutting Diameter (Decimal Inch) | 3.1496 |
| Arbor Hole Diameter (mm) | 14.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.5512 |
| Lead Angle | 90 |
| Overall Height (mm) | 115.00 |
| Overall Height (Decimal Inch) | 4.5276 |
| Insert Compatibility | APMT 2506 |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 90.00 |
| Maximum Depth of Cut (Decimal Inch) | 3.5433 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 16 |
| Insert Holding Method | Screw |
| Cutter Style | MSR |
| Number of Flutes | 4 |
| Cutting Rake Angle | -8 |
| Rake | Negative |
| Keyway Width (mm) | 9.50 |
| Keyway Width (Decimal Inch) | 0.3740 |
| Keyway Depth (Decimal Inch) | 0.236220 |
| Keyway Depth (mm) | 6 |
| ISO Number | MSR080R-4 |
| Complete Insert Compatibility | APMT 250608ER-NB3; APMT 250608ER-NB4; APMT 250616EL-NB3; APMT 250616EL-NB4; APMT 250616ER-NB3; APMT 250616ER-NB3P; APMT 250616ER-NB4; APMT 250616ER-NB4P; APMT 250640ER-NB3; APMT 250640ER-NB4 |
