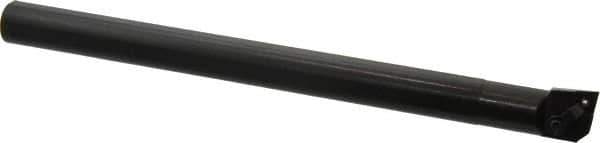

Seco - 1" Min Bore Diam, 10" OAL, 3/4" Shank Diam, MCLN Indexable Boring Bar - CNMG 322 Insert, Pin & Clamp Holding Method
Item #: 57135303
Brand: Seco
Model #: 43201
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | MCLN |
| Minimum Bore Diameter (Decimal Inch) | 1.0000 |
| Hand of Holder | Right Hand |
| Overall Length (Inch) | 10 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Insert Compatibility | CNMG 322 |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Pin & Clamp |
| Rake | Negative |
| Lead Angle | -5 |
| Center to Cutting Edge (Decimal Inch) | 0.5000 |
| Insert Thickness (Inch) | 1/8 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Complete Insert Compatibility | CN.. 322 |
| Toolholder Material | Steel |
