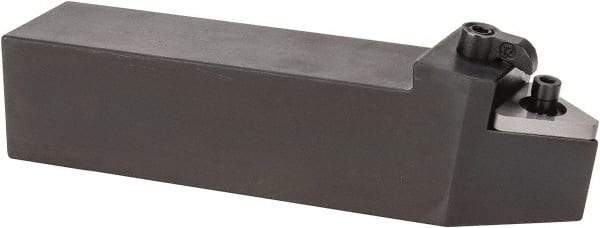

Seco - MTEN, Neutral Cut, 0° Lead Angle, 1-1/2" Shank Height x 1-1/2" Shank Width, Negative Rake Indexable Turning Toolholder - 7" OAL, TN..66. Insert Compatibility, Series Multiple Lock
Item #: 57123689
Brand: Seco
Model #: 13885
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Neutral |
| Toolholder Style | MTEN |
| Rake | Negative |
| Series | Multiple Lock |
| Lead Angle | 0 |
| Shank Width (Inch) | 1-1/2 |
| Shank Width (Decimal Inch) | 1.5000 |
| Shank Height (Inch) | 1-1/2 |
| Shank Height (Decimal Inch) | 1.5000 |
| Overall Length (Inch) | 7 |
| Overall Length (Decimal Inch) | 7.0000 |
| Insert Compatibility | TN..66. |
| Multi-Use Tool | No |
| Insert Holding Method | Pin & Clamp |
| Back of Bar to Cutting Edge (Inch) | 3/4 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.7500 |
| Head Length (Decimal Inch) | 1.9500 |
| Insert Inscribed Circle (Inch) | 3/4 |
| Insert Inscribed Circle (Decimal Inch) | 0.7500 |
| Toolholder Material | Steel |
