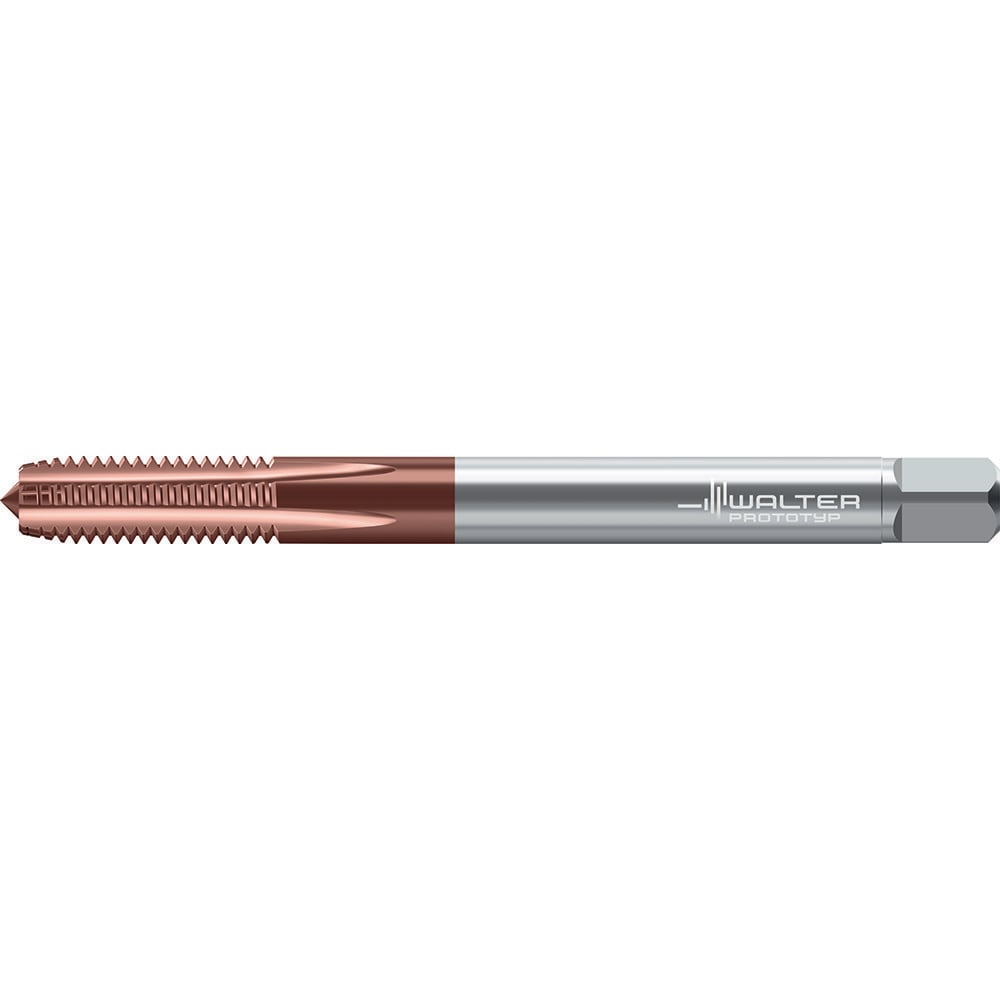

Straight Flute Tap: M4 x 0.7 M, 5 Flute, Semi-Bottoming Chamfer, 6HX Class of Fit, Solid Carbide, AlTiSiN Finish
Item #: 53455515
Brand: Walter-Prototyp
Model #: 8205975
Product Specifications
| Tap Type | Straight Flute |
| Thread Size (mm) | M4 x 0.7 |
| Thread Standard | M |
| Chamfer | Semi-Bottoming |
| Material | Carbide |
| Coating/Finish | AlTiSiN |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Class Of Fit | 6HX |
| Thread Limit | H6 |
| Number Of Flutes | 5 |
| Oversize | No |
| Overall Length (Decimal Inch) | 2.5453 |
| Overall Length (mm) | 64.6500 |
| Thread Pitch (mm) | 0.70 |
| Thread Length (Inch) | 0.4331 |
| Thread Length (mm) | 11.00 |
| Application | Threading |
| Shank Diameter (mm) | 4.5000 |
| Shank Diameter (Decimal Inch) | 0.1772 |
| Tapping Depth (mm) | 11.00 |
| Tapping Depth (Decimal Inch) | 0.4331 |
| Square Length (mm) | 6.00 |
| Square Length (Decimal Inch) | 0.2362 |
| Square Size (mm) | 3.40 |
| Square Size (Decimal Inch) | 0.1339 |
| Series | TC388 |
| UNSPSC Code | 23241600 |
