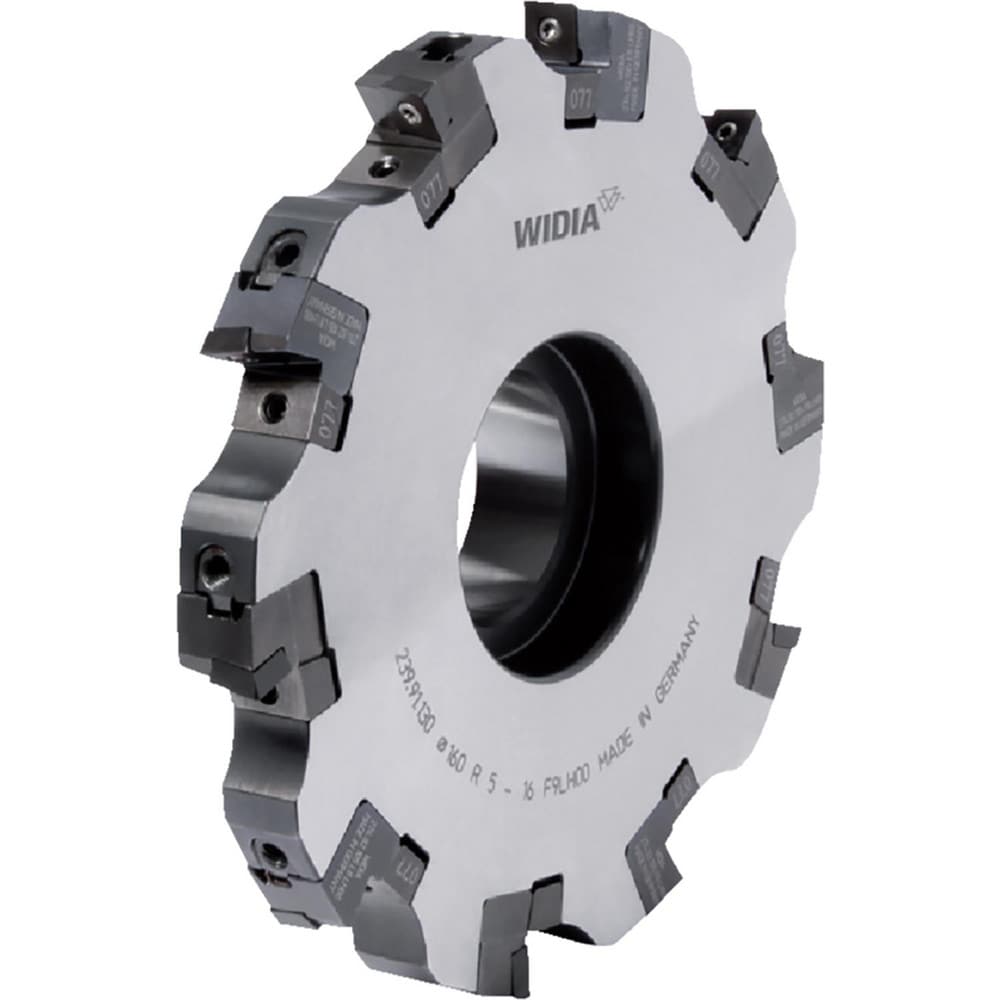

Brand: Widia / Part #: 2003997
Item #: 99767162
Brand: Widia
Model #: 2003997
Product Specifications
| Connection Type | Shell Mount |
| Cutting Width (mm) | 17.50 |
| Maximum Depth of Cut (mm) | 53.00 |
| Hole Diameter (Mm) ( - 0 Decimals) | 60.0000 |
| Cutter Diameter (mm) | 250.00 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 16 |
| Compatible Insert Style | MDHX |
| Compatible Insert Size Code | 09T308 |
| Staggered Tooth | No |
| Tooth Type | Straight |
| Rake | Positive |
| Tool Material | Steel |
| Series | M900 |
| Toolholder Style | M900 |
| Hub Diameter (mm) | 130.000 |
| Maximum RPM | 4480.000 |
| Tool Application | Milling; Slotting |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Minimum Cutting Width (Decimal Inch) | 0.6299 |
| Maximum Cutting Width (mm) | 17.50 |
| Minimum Cutting Diameter (mm) | 250.00 |
| Lead Angle | 90 |
| Maximum Body Diameter (mm) | 250.00 |
| Cutter Body Width (mm) | 17.50 |
| Weldon Flat | No |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Overall Length (mm) | 50.0000 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Number Of Teeth | 16 |
| Coolant Through | No |
| Complete Insert Compatibility | MDHX |
| Coating/Finish | Black Oxide |
| Overall Height (Mm - 5 Decimals) | 50.00000 |
