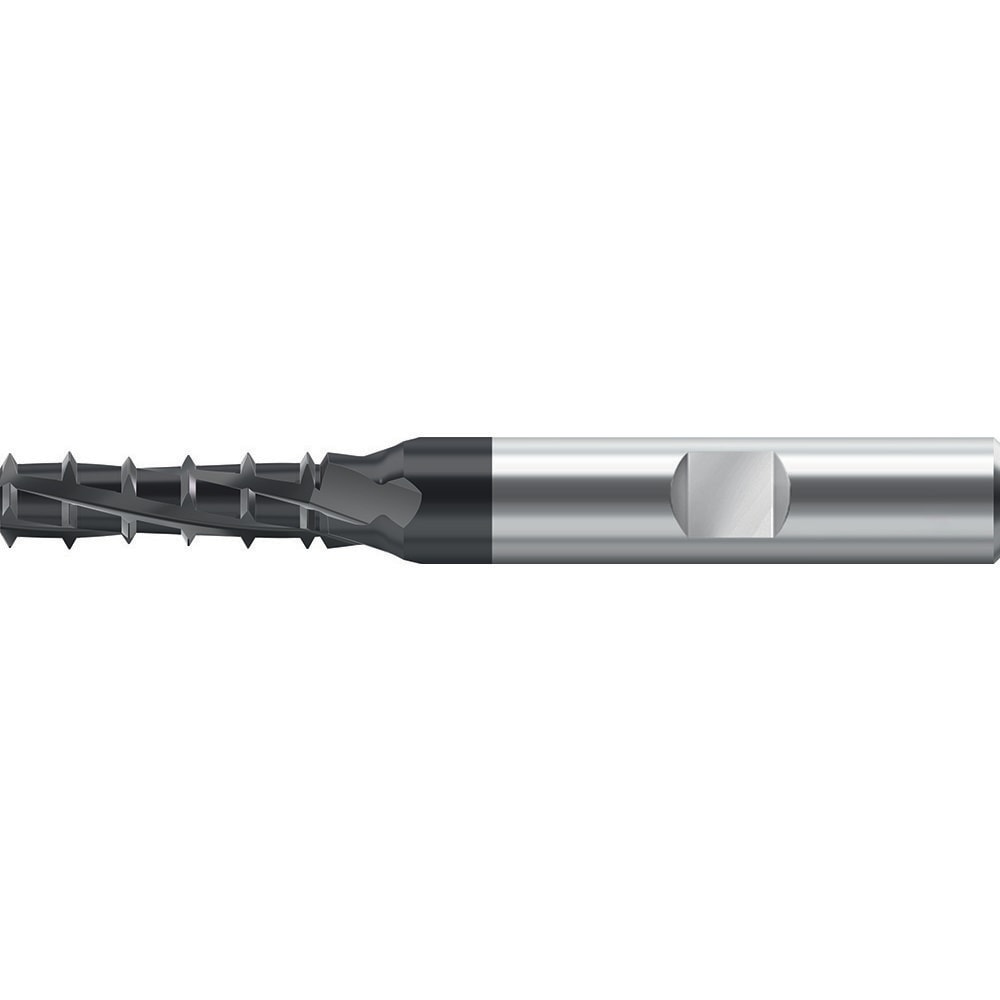

Helical Flute Thread Mill: 1/4-20, Internal, 3 Flute, 6.0000 mm Shank Dia, Solid Carbide
Item #: 53444154
Brand: Walter-Prototyp
Model #: 8154197
Product Specifications
| Material | Solid Carbide |
| Thread Size (Inch) | 1/4-20 |
| Thread Type | Internal |
| Shank Diameter (mm) | 6.0000 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Cutting Diameter (mm) | 4.70 |
| Shank Type | Weldon Flat |
| Cutting Diameter (Decimal Inch) | 0.1850 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.6500 |
| Length of Cut (mm) | 16.5100 |
| Shank Length (Decimal Inch) | 1.4173 |
| Shank Length (mm) | 36.000 |
| Overall Length (mm) | 65.0000 |
| Overall Length (Decimal Inch) | 2.5591 |
| Thread Standard | UNC |
| Flute Direction | Right Hand |
| Series | TC620-UNC-W1E |
| Number Of Flutes | 3 |
| Coating/Finish | AlTiN |
| Coolant Through | Yes |
| Teeth Per Inch | 20 |
| UNSPSC Code | 23242117 |
