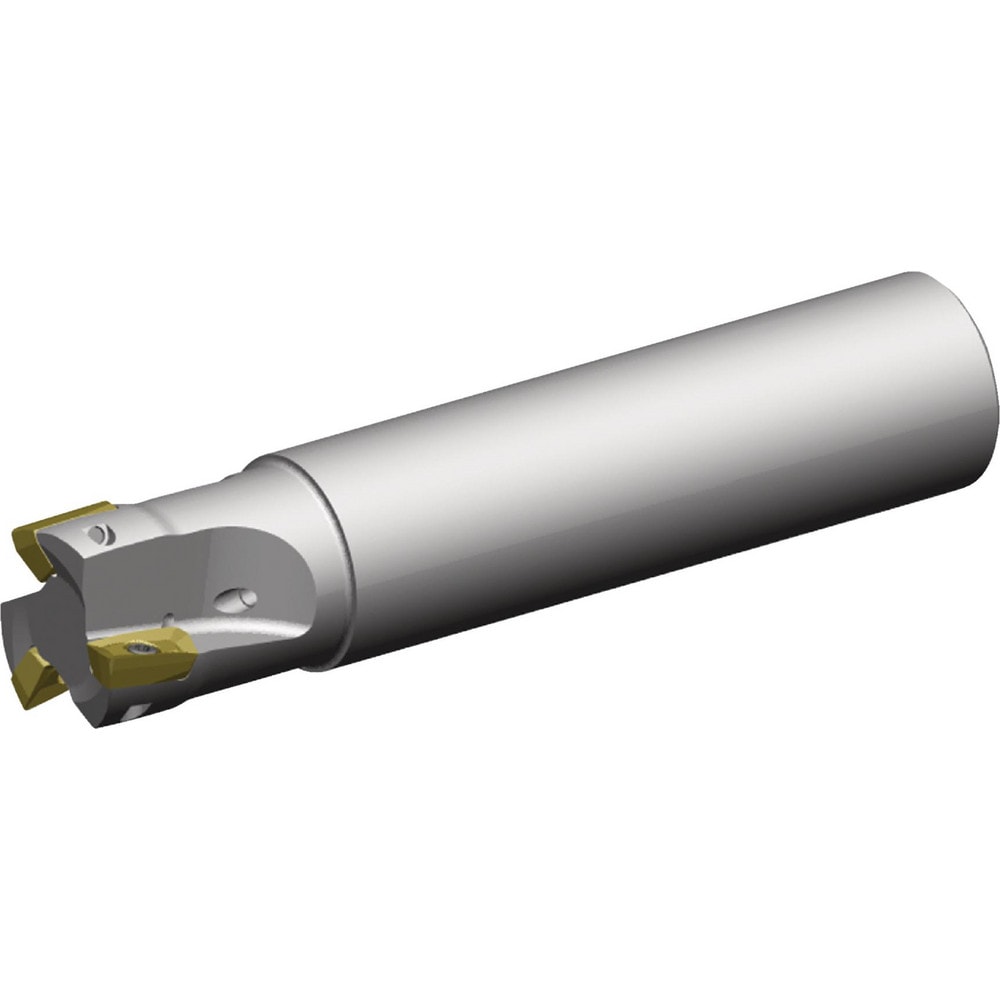

Brand: Widia / Part #: 5988108
Item #: 98264773
Brand: Widia
Model #: 5988108
Product Specifications
| Minimum Cutting Diameter (mm) | 32.00 |
| Maximum Cutting Diameter (mm) | 32.00 |
| Maximum Depth of Cut (mm) | 50.00 |
| Cutter Style | VSM |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 32.0000 |
| Maximum Ramping Angle | 5.7 ? |
| Insert Holding Method | Screw |
| Shank Taper Size | None |
| Overall Length (mm) | 210.0000 |
| Tool Material | Steel |
| Series | VSM17 |
| Flute Type | Spiral |
| Lead Angle | 90 |
| Shank Length (mm) | 160.000 |
| Head Length (mm) | 50.00 |
| Maximum RPM | 34700.000 |
| Tool Application | Pocketing; Milling; Ramping; Slotting |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| End Mill Type | Shoulder Square End Mill |
| Coolant Hole Diameter (mm) | 7.00 |
| Rake | Negative (Radial); Positive (Axial) |
| Complete Insert Compatibility | XD.T17.. |
| Insert Compatibility | XD.T17.. |
| Hand of Holder | Right Hand |
| Rake Angle | -7.80 ? (Radial);7.50 ? (Axial) |
| Multi-Use Tool | Yes |
| ISO Number | VSM17D032Z02A32XD17L210 |
| Manufacturers Catalog Number | VSM17D032Z02A32XD17L210 |
| Usable Length (mm) | 50.000 |
| Number Of Flutes | 2 |
| Number Of Cutter Inserts | 2 |
| Coolant Through | Yes |
