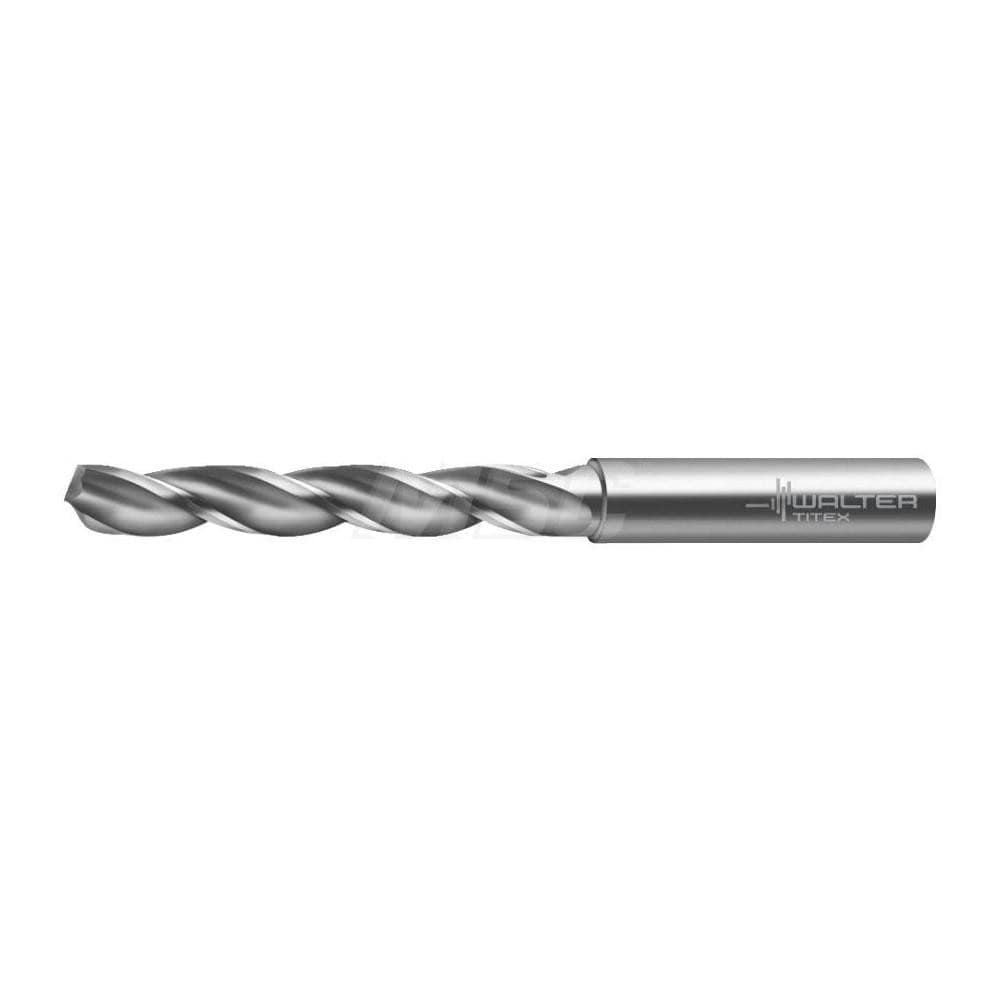

Jobber Drill: 6.80 mm Dia, 130 deg Point, Solid Carbide
Item #: 00503664
Brand: Walter-Titex
Model #: 5063684
Product Specifications
| Drill Bit Size (mm) | 6.80 |
| Drill Bit Size (Decimal Inch) | 0.2677 |
| Drill Bit Material | Solid Carbide |
| Drill Point Angle (Degrees) | 130 |
| Coating/Finish | Bright/Uncoated |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | Standard |
| Primary Workpiece Material | Aluminum & Non-Ferrous; Cast Iron |
| Coolant Through | No |
| Number of Flutes | 3 |
| Primary Workpiece Material Code | K; N |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Overall Length (mm) | 91.00 |
| Overall Length (Decimal Inch) | 3.5827 |
| Spiral Type | Regular |
| Flute Length (mm) | 53.00 |
| Flute Length (Decimal Inch) | 2.0866 |
| Series | A3367 |
| Tool Application | Cross Hole; Blind Hole; Inclined Hole Exit; Stack Drilling |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 8 |
| Maximum Drilling Depth (Decimal Inch) | 1.6929 |
| Maximum Drilling Depth (mm) | 43.00 |
| Shank Length (mm) | 36 |
| Shank Length (Decimal Inch) | 1.4173 |
| Drill Point Length (mm) | 1.59 |
| Drill Point Length (Decimal Inch) | 0.0624 |
| Drill Bit Diameter Tolerance | m7 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight |
| Tool Performance | High Performance |
| Standards | ISO; ANSI |
| Drill Bit Size Range (Decimal Inch) | 0.2500 - 0.3000 |
| Drill Bit Size Range (mm) | 6.00 - 7.00 |
| Material Grade | K30F |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
