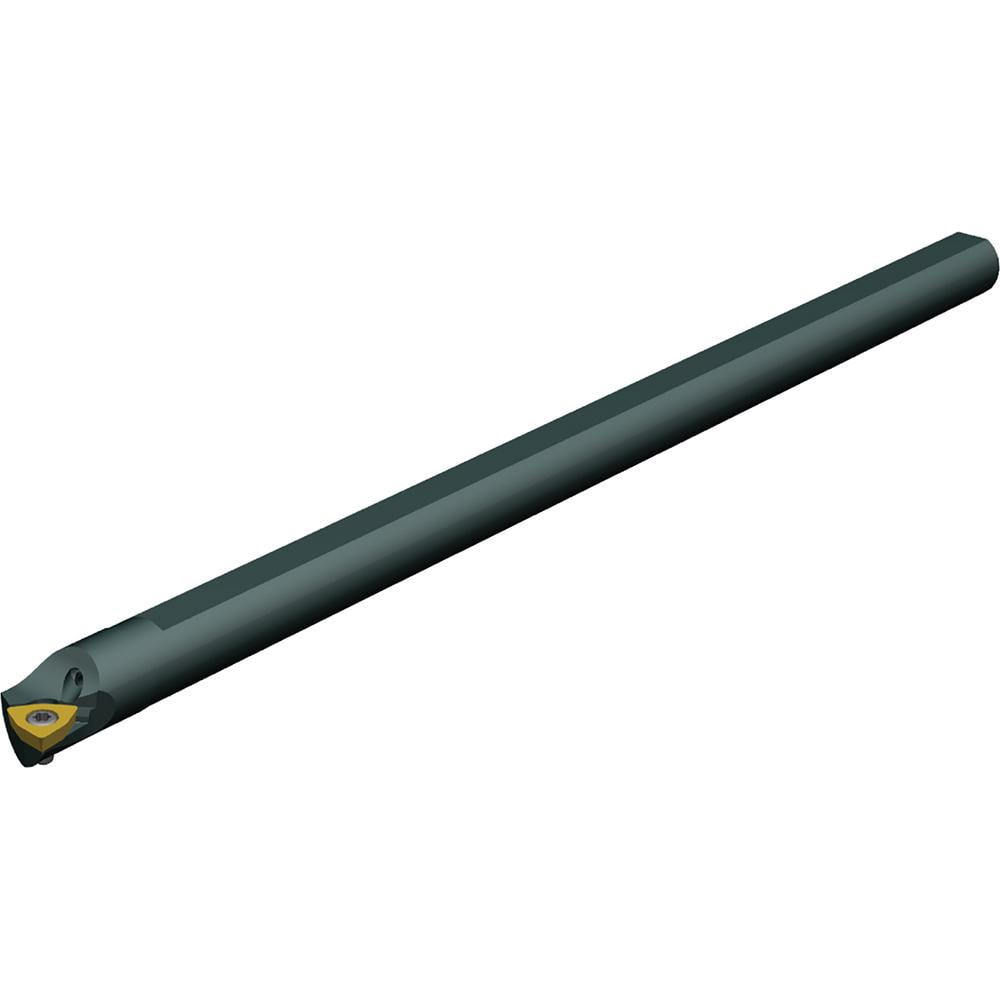

Brand: Widia / Part #: 2827727
Item #: 02773158
Brand: Widia
Model #: 2827727
Product Specifications
| Minimum Bore Diameter (Decimal Inch) | 0.3470 |
| Maximum Bore Depth (Decimal Inch) | 2.1840 |
| Toolholder Style | W3126 |
| Tool Material | Carbide |
| Shank Diameter (Decimal Inch) | 0.3120 |
| Hand of Holder | Left Hand |
| Shank Diameter (Inch) | 5/16 |
| Overall Length (Decimal Inch) | 6.0000 |
| Overall Length (Inch) | 6 |
| Compatible Insert Size Code | WP..1511 |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Trigon |
| Insert Included | No |
| Rake | Positive |
| Cutting Direction | Left Hand |
| Rake Angle | -3.000 |
| Lead Angle | -3.000 |
| Series | GCBIW |
| Insert Inscribed Circle (Inch) | 3/16 |
| Compatible Insert Thickness (Decimal Inch) | 0.0625 |
| Compatible Insert Thickness (mm) | 1.59 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Boring |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.3300 |
| Center to Cutting Edge (Decimal Inch) | 0.1740 |
| Primary Workpiece Material | Universal |
| Multi-Use Application | Boring |
| Number of Inserts Used on Toolholder | 1 |
| Neck Diameter (Decimal Inch) | 0.3200 |
| Insert Thickness (Decimal Inch) | 0.0625 |
| Insert Thickness (Inch) | 1/16 |
| Coolant Hole Diameter (Decimal Inch) | 0.0930 |
| Number of Inserts Included in Order | 0 |
| Manufacturers Catalog Number | GCBIW31263L |
| Radial Rake | 0 |
| Coolant Through | Yes |
