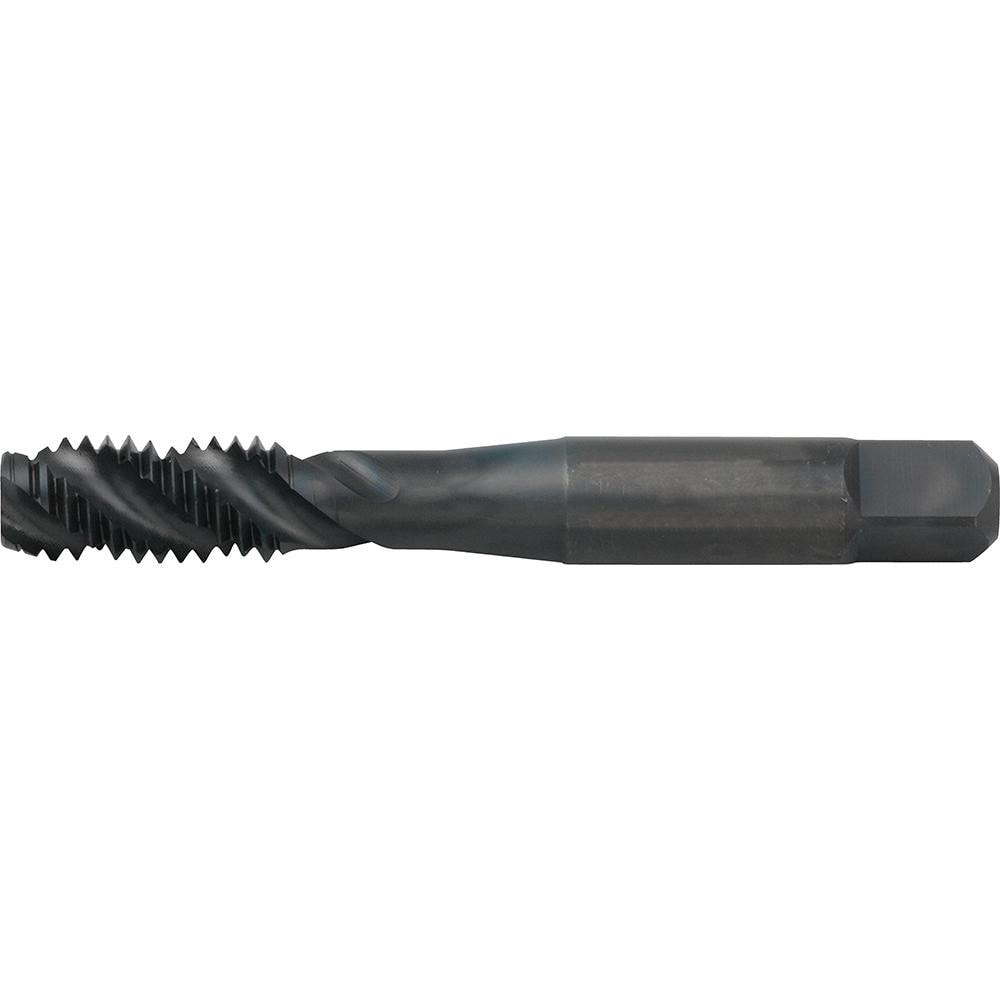

Brand: Widia / Part #: 5400157
Item #: 97217897
Brand: Widia
Model #: 5400157
Product Specifications
| Thread Size (mm) | M4x0.7 |
| Chamfer | Bottoming |
| Thread Limit | D4 |
| Class Of Fit | 6H |
| Number Of Flutes | 3 |
| Material | High Speed Steel |
| Threads per Inch | 36 |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Coating/Finish | Oxide |
| Thread Depth (mm) | 19.40 |
| Coolant Through | No |
| Thread Length (mm) | 9.70 |
| Overall Length (mm) | 54.1000 |
| Thread Pitch (mm) | 0.70 |
| Thread Standard | Metric |
| Material Grade | WP49EG |
| Shank Diameter (mm) | 4.2700 |
| Square Length (mm) | 6.40 |
| Square Size (mm) | 3.28 |
| Material Application | Stainless Steel; Cast Iron; Steel |
| Series | VTSFT |
