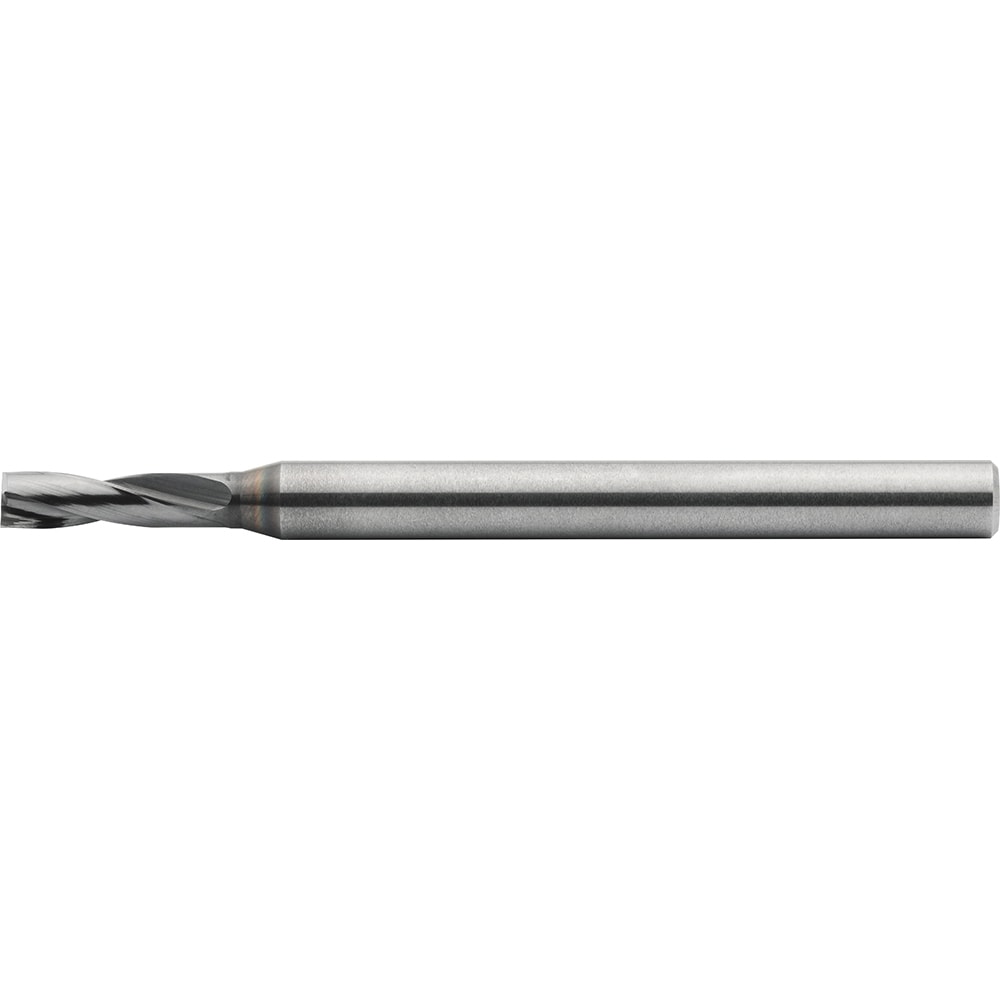

Micro Drill Bit: 1.65 mm Dia, (0.0650"), 180 deg, Solid Carbide
Item #: 87780995
Brand: Mitsubishi
Model #: 10592311
Product Specifications
| Drill Bit Size (mm) | 1.65 |
| Drill Bit Size (Decimal Inch) | 0.0650 |
| Tool Material | Solid Carbide |
| Flute Length (Decimal Inch) | 0.2598 |
| Flute Length (mm) | 6.60 |
| Coating/Finish | TiAlN |
| Coolant Through | No |
| Drill Point Angle | 180 |
| Cutting Direction | Right Hand |
| Maximum Drilling Depth (mm) | 3.30 |
| Maximum Drilling Depth (Decimal Inch) | 0.1299 |
| Number Of Flutes | 2 |
| Series | MFE |
| Overall Length (Decimal Inch) | 1.7717 |
| Overall Length (mm) | 45.00 |
| Flute Type | Spiral |
| Shank Type | Straight-Cylindrical |
| Point Type | X-Thinning |
| Tool Application | Very Small Hole Drilling; Blind Hole |
| Web Thinning | X-Thinned |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel; Aluminum; Cast Iron; Brass; Carbon Steel; Superalloys & Titanium; Aluminum Alloy; Steel; Copper; Hardened Steel |
| Secondary Workpiece Material Code | P; K; M; N |
| Standards | ISO |
| Shank Diameter (Decimal Inch) | 0.1181 |
| Shank Diameter (mm) | 3.00 |
| Shank Length (Decimal Inch) | 1.3937 |
| Shank Length (mm) | 35.40 |
| Flute By Diameter Ratio | 2xD |
| UNSPSC Code | 23241600 |
| Country of Origin | Japan |
