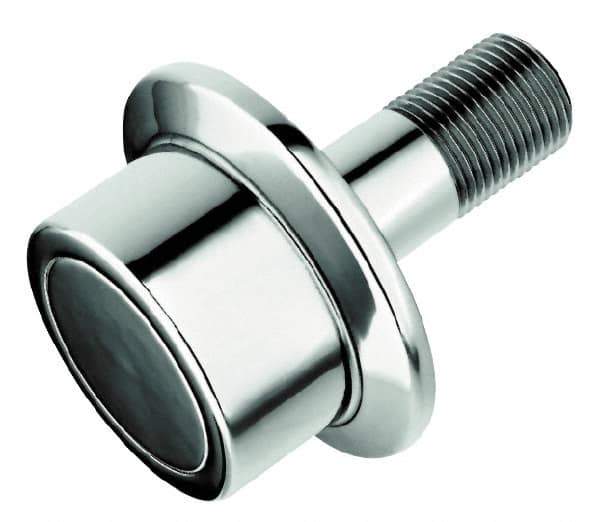

Accurate Bushing - 2-1/4" Roller Diam x 1-11/16" Width, 7/8" Stud Diam x 2" Length, Flanged Load Roller - Steel, 1-1/8" Thread Length, 7/8-14 Thread, 3,490 Lb Dynamic Cap, 2,000 Lb Static Cap
Item #: 56612120
Brand: Accurate Bushing
Model #: FCR-2-1/4
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Flanged Load Roller |
| Roller Diameter (Inch) | 2-1/4 |
| Roller Width (Decimal Inch) | 1.6875 |
| Stud Diameter (Decimal Inch) | 0.8750 |
| Dynamic Load Capacity (Lb.) | 3490 |
| Static Load Capacity (Pounds) | 2000.00 |
| Thread Size | 7/8-14 |
| Material | Steel |
| Flange Diameter (Inch) | 2-15/16 |
| Flange Diameter (Decimal Inch) | 2.9375 |
| Flange Thickness (Decimal Inch) | 0.5938 |
| Stud Length (Decimal Inch) | 2.0000 |
| Stud Length (Inch) | 2 |
| Thread Length (Inch) | 1-1/8 |
