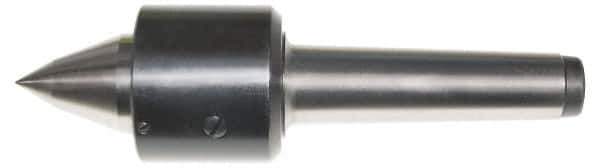

Interstate - MT5 Taper Shank Shank, 2.736" Head Diam, 3,960 Lb Capacity, Live Center - 3,400 Max RPM, 1.772" Point Diam, 2.68" Point Len, 3,960 Lb Max Workpc, Long Point
Item #: 56590433
Brand: Interstate
Exact Tooling IR#: 04
Features and Benefits
Long points are used for shaft work, parts with large diameters and where tool clearance is a priority.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT5 |
| Maximum Workpiece Weight (Lb.) | 3960.00 |
| Point Style | Long |
| Point Diameter (Decimal Inch) | 1.7720 |
| Tip Diameter (Decimal Inch) | 1.7700 |
| Point Length (Decimal Inch) | 2.6800 |
| Accuracy (mm) | 0.0050 |
| Load Capacity (Lb.) | 3960.00 |
| Head Diameter (Decimal Inch) | 2.7360 |
| Head Length (Decimal Inch) | 2.2100 |
| Shank Length (Decimal Inch) | 5.1000 |
| Overall Length (Decimal Inch) | 10.1970 |
| Included Angle | 60.00 |
| Maximum RPM | 3400 |
| Material | Steel |
